NHP170

Toyota SIENTA · 2015 · 2,569 parts · 164 categories

2,569 items

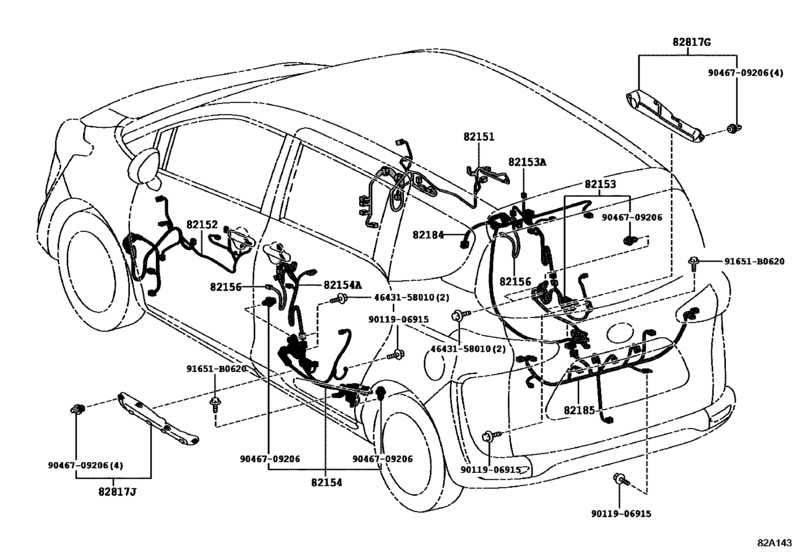

Wiring & Clamp ([06.2015 - ] DOOR (1506- )) 22

#	OEM	Part name
82151	82151-52W70	Wire, Front Door, Rh
82151	82151-52W50	Wire, Front Door, Rh
82152	82152-52U10	Wire, Front Door, Lh
82152	82152-52T90	Wire, Front Door, Lh
82153	82153-52860	Wire, Rear Door, No.1
82153	82157-52020	Wire, Rear Door, Rh
82153	82153-52850	Wire, Rear Door, No.1
82153	82157-52010	Wire, Rear Door, Rh
82154	82154-52540	Wire, Rear Door, No.2
82154	82158-52020	Wire, Rear Door, Lh
82156	82156-52020	Wire, Slide Door
82184	82184-52880	Wire, Back Door, No.1
82185	82185-52A60	Wire, Back Door, No.2
82185	82185-52A61	Wire, Back Door, No.2
82185	82185-52A80	Wire, Back Door, No.2
82185	82185-52A81	Wire, Back Door, No.2
82817	82817-52J50	Protector, Wiring Harness, No.8
82817	82817-52J60	Protector, Wiring Harness, No.9
91651	91651-B0620	New Genuine Part
4643158010	46431-58010	Bolt, Wire
9011906915	90119-06915	BOLT W-WASHER
9046709206	90467-09206	Clip, Front Air Shutter Seal

OEM	Part name	Category
46431-58010	Bolt, Wire	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82151-52W50	Wire, Front Door, Rh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82151-52W70	Wire, Front Door, Rh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82152-52T90	Wire, Front Door, Lh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82152-52U10	Wire, Front Door, Lh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82153-52850	Wire, Rear Door, No.1	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82153-52860	Wire, Rear Door, No.1	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82154-52540	Wire, Rear Door, No.2	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82156-52020	Wire, Slide Door	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82157-52010	Wire, Rear Door, Rh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82157-52020	Wire, Rear Door, Rh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82158-52020	Wire, Rear Door, Lh	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82184-52880	Wire, Back Door, No.1	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82185-52A60	Wire, Back Door, No.2	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82185-52A61	Wire, Back Door, No.2	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82185-52A80	Wire, Back Door, No.2	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82185-52A81	Wire, Back Door, No.2	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82817-52J50	Protector, Wiring Harness, No.8	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
82817-52J60	Protector, Wiring Harness, No.9	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
90467-09206	Clip, Front Air Shutter Seal	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
91651-B0620	New Genuine Part	Wiring & Clamp ([06.2015 - ] DOOR (1506- ))
