Search › Model › NHP170

NHP170

Toyota SIENTA · 2015 · 2,569 parts · 164 categories

2,569 items

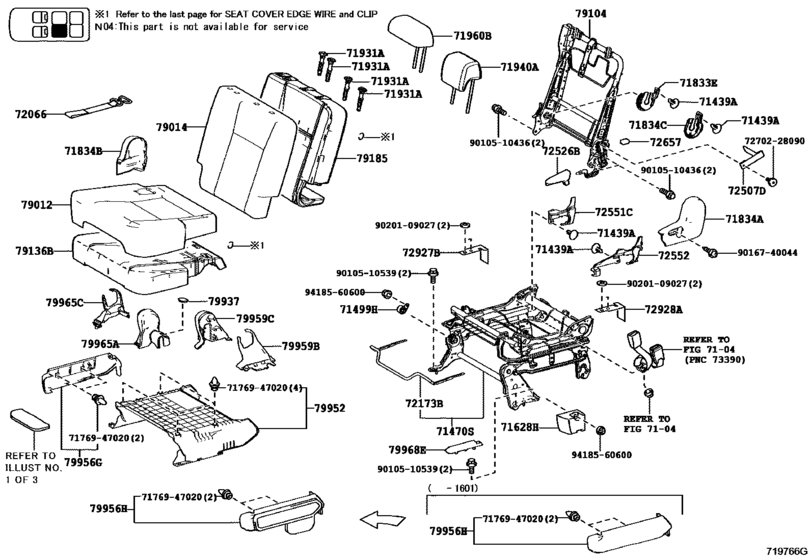

Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- )) 55

#	OEM	Part name
71439	67771-26230-C0	Clip
71470	71470-52580	Cushion Assy, Rear Seat, Lh (For Separate Type)
71499	71499-52070	Damper, Rear Seat Back Spring, Lh
71628	72136-52030	Spacer, Rear Seat Cushion, Lh
71833	71833-52190-C0	Cover, Rear Seat Reclining, No.3 Rh
71834	71834-52190-C0	Cover, Rear Seat Reclining, No.1 Lh
71834	71834-52180-C0	Cover, Rear Seat Reclining, No.2 Lh
71834	71834-52170-C0	Cover, Rear Seat Reclining, No.3 Lh
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
71940	71940-52G40-B2	Headrest Assy, Rear Seat
71940	71940-52G40-E0	Headrest Assy, Rear Seat
71940	71940-52G30-B0	Headrest Assy, Rear Seat
71940	71940-52G30-E1	Headrest Assy, Rear Seat
71960	71960-52A30-B2	Headrest Assy, Rear Seat, Center
71960	71960-52A30-E0	Headrest Assy, Rear Seat, Center
71960	71960-52A20-B0	Headrest Assy, Rear Seat, Center
71960	71960-52A20-E1	Headrest Assy, Rear Seat, Center
72066	72065-28171-C1	Belt Sub-Assy, Rear Seat Hook, Rh
72173	72173-52030	Handle, Rear Seat Track Adjusting, Rh
72507	72507-52030-C0	Handle Sub-Assy, No.2 Seat Reclining Release
72526	72526-52080-C0	Handle, Reclining Adjuster Release, No.1 Lh
72551	72551-52100-C0	Cover, Reclining Hinge, No.2
72552	72552-52100-C0	Cover, Reclining Hinge, No.2
72657	72657-28010	Silencer, Rear Seat Back Lock Control Rod
72927	72907-52010	Cover, Rear Seat Cushion Under, Rh
72928	72908-52010	Cover, Rear Seat Cushion Under, Lh
79012	79012-52070-B2	Cover Sub-Assy, No.1 Seat Cushion, Lh
79012	79012-52070-B3	Cover Sub-Assy, No.1 Seat Cushion, Lh
79012	79012-52060-B2	Cover Sub-Assy, No.1 Seat Cushion, Lh
79012	79012-52060-B3	Cover Sub-Assy, No.1 Seat Cushion, Lh
79014	79014-52070-B2	Cover Sub-Assy, No.1 Seat Back, Lh
79014	79014-52070-B3	Cover Sub-Assy, No.1 Seat Back, Lh
79014	79014-52060-A1	Cover Sub-Assy, No.1 Seat Back, Lh
79014	79014-52060-B2	Cover Sub-Assy, No.1 Seat Back, Lh
79104	79104-52020	Frame Sub-Assy, No.1 Seat Back, Lh
79136	79136-52020	Pad, No.1 Seat Cushion, Lh
79185	79185-52020	Pad, No.1 Seat Back, Lh
79937	79937-52040-C0	Cover, Rear Seat Leg, No.2
79952	79951-52030-C0	Cover, No.2 Seat Cushion
79956	79956-52120-C0	Cover, No.3 Seat Leg Side, Rh
79956	79076-52080-C0	Cover, No.3 Seat Leg Side, Lh
79956	79956-52130-C0	Cover, No.3 Seat Leg Side, Lh
79959	79959-52280-C0	Cover, Rear Seat Leg, Lh
79959	79959-52270-C0	Cover, Rear Seat Leg
79965	79965-52140-C0	Cover, Rear Seat Leg Side, No.2
79965	79965-52130-C0	Cover, Rear Seat Leg Side, No.2
79968	79956-52030-C0	Cover, Rear Seat Leg Side, No.5, Lh
7176947020	71769-47020	Clip, Rear Seat Back Board
7270228090	72702-28090	Bracket Sub-assy, Rear Seat Back Striker
9010510436	90105-10436	BOLT WASHER BASED
9010510539	90105-10539	New Genuine Part
9016740044	90167-40044	BOLT
9020109027	90201-09027	New Genuine Part
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
67771-26230-C0	Clip	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71470-52580	Cushion Assy, Rear Seat, Lh (For Separate Type)	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71499-52070	Damper, Rear Seat Back Spring, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71769-47020	Clip, Rear Seat Back Board	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71833-52190-C0	Cover, Rear Seat Reclining, No.3 Rh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71834-52170-C0	Cover, Rear Seat Reclining, No.3 Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71834-52180-C0	Cover, Rear Seat Reclining, No.2 Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71834-52190-C0	Cover, Rear Seat Reclining, No.1 Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71930-44020-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71931-47010-C0	Support Assy, Rear Seat Legrest	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71940-52G30-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71940-52G30-E1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71940-52G40-B2	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71940-52G40-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71960-52A20-B0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71960-52A20-E1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71960-52A30-B2	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
71960-52A30-E0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72065-28171-C1	Belt Sub-Assy, Rear Seat Hook, Rh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72136-52030	Spacer, Rear Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72173-52030	Handle, Rear Seat Track Adjusting, Rh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72507-52030-C0	Handle Sub-Assy, No.2 Seat Reclining Release	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72526-52080-C0	Handle, Reclining Adjuster Release, No.1 Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72551-52100-C0	Cover, Reclining Hinge, No.2	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72552-52100-C0	Cover, Reclining Hinge, No.2	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72657-28010	Silencer, Rear Seat Back Lock Control Rod	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72702-28090	Bracket Sub-assy, Rear Seat Back Striker	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72907-52010	Cover, Rear Seat Cushion Under, Rh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
72908-52010	Cover, Rear Seat Cushion Under, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79012-52060-B2	Cover Sub-Assy, No.1 Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79012-52060-B3	Cover Sub-Assy, No.1 Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79012-52070-B2	Cover Sub-Assy, No.1 Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79012-52070-B3	Cover Sub-Assy, No.1 Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79014-52060-A1	Cover Sub-Assy, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79014-52060-B2	Cover Sub-Assy, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79014-52070-B2	Cover Sub-Assy, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79014-52070-B3	Cover Sub-Assy, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79076-52080-C0	Cover, No.3 Seat Leg Side, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79104-52020	Frame Sub-Assy, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79136-52020	Pad, No.1 Seat Cushion, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79185-52020	Pad, No.1 Seat Back, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79937-52040-C0	Cover, Rear Seat Leg, No.2	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79951-52030-C0	Cover, No.2 Seat Cushion	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79956-52030-C0	Cover, Rear Seat Leg Side, No.5, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79956-52120-C0	Cover, No.3 Seat Leg Side, Rh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79956-52130-C0	Cover, No.3 Seat Leg Side, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79959-52270-C0	Cover, Rear Seat Leg	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79959-52280-C0	Cover, Rear Seat Leg, Lh	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79965-52130-C0	Cover, Rear Seat Leg Side, No.2	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
79965-52140-C0	Cover, Rear Seat Leg Side, No.2	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
90105-10436	BOLT WASHER BASED	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
90105-10539	New Genuine Part	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
90167-40044	BOLT	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
90201-09027	New Genuine Part	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
94185-60600	Nut, Wire Adjusting, No.1	Rear Seat & Seat Track ([06.2015 - ] REAR NO.1 SEAT LH (1506- ))
