Search › Model › NHP170

NHP170

Toyota SIENTA · 2015 · 2,569 parts · 164 categories

2,569 items

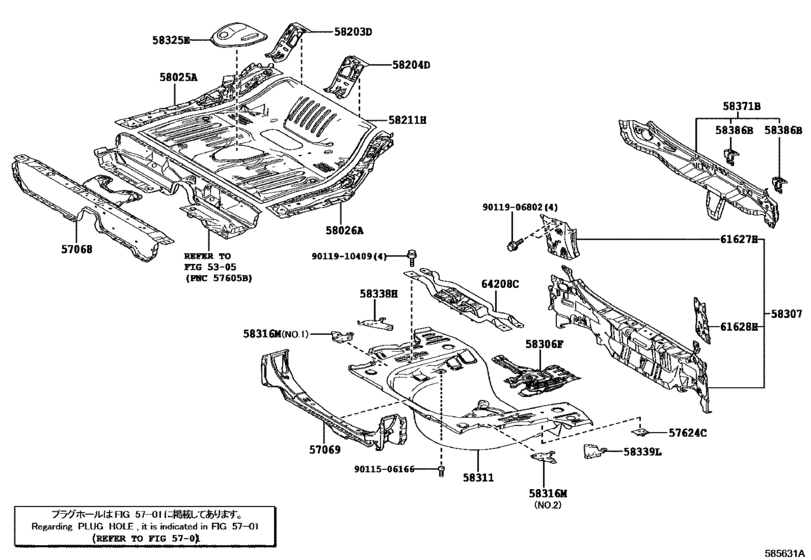

Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170) 24

#	OEM	Part name
57068	57068-52040	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-52040	Member Sub-Assy, Rear Floor Rear Cross, Outer
57624	57624-52020	Plate, Rear Floor Side Member, Rr Lh
58025	58025-52050	Panel Sub-Assy, Floor Side Rail, Fr Rh
58026	58026-52070	Panel Sub-Assy, Floor Side Rail, Fr Lh
58203	58203-52110	Bracket Sub-Assy, Rear Seat Hinge, Outer Rh
58204	58204-52090	Bracket Sub-Assy, Rear Seat Hinge, Outer Lh
58211	58211-52300	Pan, Center Floor
58306	58303-52020	Panel Sub-Assy, Rear Floor Side, Lh
58307	58302-52160	Panel Sub-Assy, Body Lower Back
58311	58311-52912	Pan, Rear Floor
58316	58317-52030	Retainer, Rear Seat Anchor
58316	58318-52010	Retainer, Rear Seat Anchor
58325	58325-52090	Cover, Rear Floor Service Hole
58338	58338-52040	Reinforcement, Rear Floor Pan, No.2 Rh
58339	58339-52090	Reinforcement, Rear Floor Pan, No.2 Lh
58371	58307-52670	Panel, Body Lower Back, Outer
58386	58386-47020	Bracket, Rear Bumper Cover, No.2
61627	61627-52030	Extension, Quarter Panel, Rear Lower Rh
61628	61628-52030	Extension, Quarter Panel, Rear Lwr Lh
64208	64208-52031	Member Sub-Assy, Room Partition Cross
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011906802	90119-06802	BOLT WWASHER
9011910409	90119-10409	New Genuine Part

OEM	Part name	Category
57068-52040	Member Sub-Assy, Rear Floor Rear Cross, Inner	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
57069-52040	Member Sub-Assy, Rear Floor Rear Cross, Outer	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
57624-52020	Plate, Rear Floor Side Member, Rr Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58025-52050	Panel Sub-Assy, Floor Side Rail, Fr Rh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58026-52070	Panel Sub-Assy, Floor Side Rail, Fr Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58203-52110	Bracket Sub-Assy, Rear Seat Hinge, Outer Rh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58204-52090	Bracket Sub-Assy, Rear Seat Hinge, Outer Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58211-52300	Pan, Center Floor	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58302-52160	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58303-52020	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58307-52670	Panel, Body Lower Back, Outer	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58311-52912	Pan, Rear Floor	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58317-52030	Retainer, Rear Seat Anchor	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58318-52010	Retainer, Rear Seat Anchor	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58325-52090	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58338-52040	Reinforcement, Rear Floor Pan, No.2 Rh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58339-52090	Reinforcement, Rear Floor Pan, No.2 Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
58386-47020	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
61627-52030	Extension, Quarter Panel, Rear Lower Rh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
61628-52030	Extension, Quarter Panel, Rear Lwr Lh	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
64208-52031	Member Sub-Assy, Room Partition Cross	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
90119-06802	BOLT WWASHER	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)
90119-10409	New Genuine Part	Floor Pan & Lower Back Panel ([07.2015 - ] (1507- )NHP170)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 164
Collected: 2026-08-04
