Search › Model › NHP170
NHP170

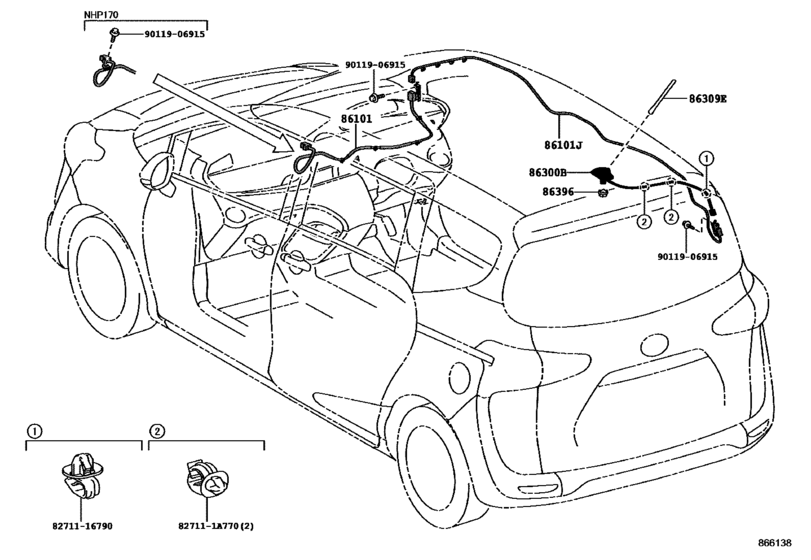

Antenna ([06.2015 - ] (1506- )) 8
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-52C20 | Cord Sub-Assy, Antenna |
| 86101 | 86101-52C10 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-52680 | Antenna Assy, Amplifier, No.1 |
| 86309 | 86309-42080 | Pole Sub-Assy, Roof Antenna |
| 86396 | 86396-47010 | Nut, Antenna |
| 827111 | 82711-1A770 | Clamp, Wiring Harness |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-16790 | Clamp, Wiring Harness | Antenna ([06.2015 - ] (1506- )) |
| 82711-1A770 | Clamp, Wiring Harness | Antenna ([06.2015 - ] (1506- )) |
| 86101-52C10 | Cord Sub-Assy, Antenna, No.2 | Antenna ([06.2015 - ] (1506- )) |
| 86101-52C20 | Cord Sub-Assy, Antenna | Antenna ([06.2015 - ] (1506- )) |
| 86300-52680 | Antenna Assy, Amplifier, No.1 | Antenna ([06.2015 - ] (1506- )) |
| 86309-42080 | Pole Sub-Assy, Roof Antenna | Antenna ([06.2015 - ] (1506- )) |
| 86396-47010 | Nut, Antenna | Antenna ([06.2015 - ] (1506- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([06.2015 - ] (1506- )) |
