Search › Model › NHP10
NHP10

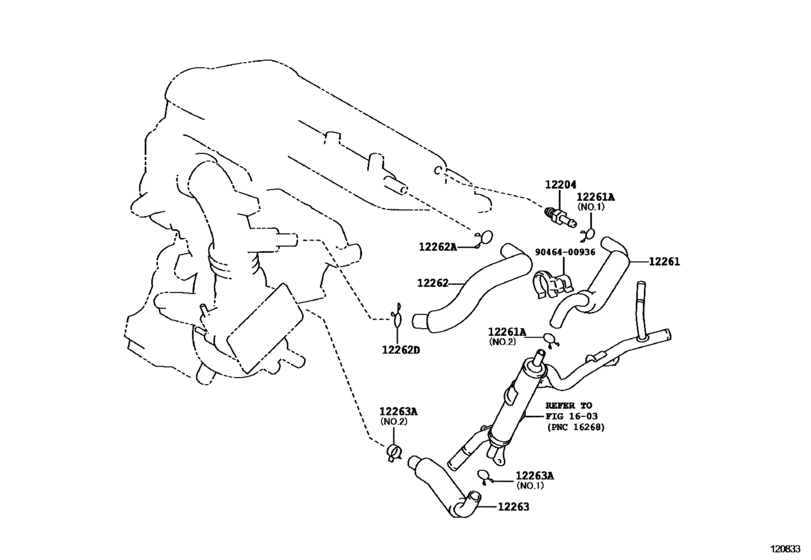

Ventilation Hose ([12.2011 - ] (1112- )) 11
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-21013 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-21012 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-21101 | Hose, Ventilation |
| 12261 | 90466-17004 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-15120 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-21110 | Hose, Ventilation, No.2 |
| 12262 | 16581-21050 | Clip(For Ventilation Hose No.2) |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-21020 | Hose, Ventilation, No.3 |
| 12263 | 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) |
| 9046400936 | 90464-00936 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12204-21012 | Valve Sub-Assy, Ventilation | Ventilation Hose ([12.2011 - ] (1112- )) |
| 12204-21013 | Valve Sub-Assy, Ventilation | Ventilation Hose ([12.2011 - ] (1112- )) |
| 12261-21101 | Hose, Ventilation | Ventilation Hose ([12.2011 - ] (1112- )) |
| 12262-21110 | Hose, Ventilation, No.2 | Ventilation Hose ([12.2011 - ] (1112- )) |
| 12263-21020 | Hose, Ventilation, No.3 | Ventilation Hose ([12.2011 - ] (1112- )) |
| 16581-21050 | Clip(For Ventilation Hose No.2) | Ventilation Hose ([12.2011 - ] (1112- )) |
| 90464-00936 | New Genuine Part | Ventilation Hose ([12.2011 - ] (1112- )) |
| 90466-17004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.2011 - ] (1112- )) |
| 90467-15120 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.2011 - ] (1112- )) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.2011 - ] (1112- )) |
| 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) | Ventilation Hose ([12.2011 - ] (1112- )) |
