Search › Model › NHP10
NHP10

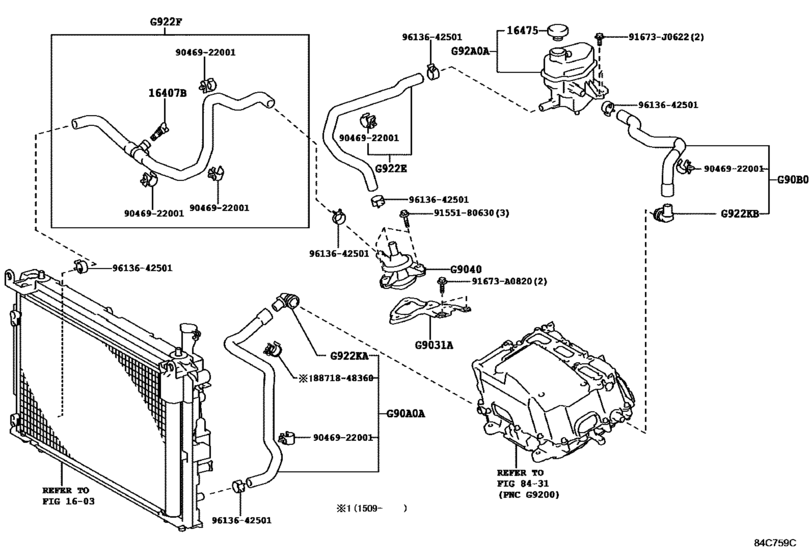

Inverter Cooling ([12.2011 - ] (1112- )) 10
| # | OEM | Part name |
|---|---|---|
| 16407 | 16407-64010 | Cock Sub-Assy, Water Drain(For Water By-Pass Joint) |
| 16475 | 16475-28140 | Cap Sub-Assy, Radiator Reserve Tank |
| 16475 | 16475-51011 | Cap, Reserve Tank |
| 16475 | 16475-51010 | Cap Sub-Assy, Radiator Reserve Tank |
| 91673 | 91673-A0820 | BOLT FLANGE |
| 91673 | 91673-J0622 | New Genuine Part |
| 8871848360 | 88718-48360 | Clip Or Clamp (For Heater Water Hose) |
| 9046922001 | 90469-22001 | Clamp, Piping |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 16407-64010 | Cock Sub-Assy, Water Drain(For Water By-Pass Joint) | Inverter Cooling ([12.2011 - ] (1112- )) |
| 16475-28140 | Cap Sub-Assy, Radiator Reserve Tank | Inverter Cooling ([12.2011 - ] (1112- )) |
| 16475-51010 | Cap Sub-Assy, Radiator Reserve Tank | Inverter Cooling ([12.2011 - ] (1112- )) |
| 16475-51011 | Cap, Reserve Tank | Inverter Cooling ([12.2011 - ] (1112- )) |
| 88718-48360 | Clip Or Clamp (For Heater Water Hose) | Inverter Cooling ([12.2011 - ] (1112- )) |
| 90469-22001 | Clamp, Piping | Inverter Cooling ([12.2011 - ] (1112- )) |
| 91551-80630 | Bolt(For Cylinder Head Cover) | Inverter Cooling ([12.2011 - ] (1112- )) |
| 91673-A0820 | BOLT FLANGE | Inverter Cooling ([12.2011 - ] (1112- )) |
| 91673-J0622 | New Genuine Part | Inverter Cooling ([12.2011 - ] (1112- )) |
| 96136-42501 | Clip(For Ventilation Hose) | Inverter Cooling ([12.2011 - ] (1112- )) |
