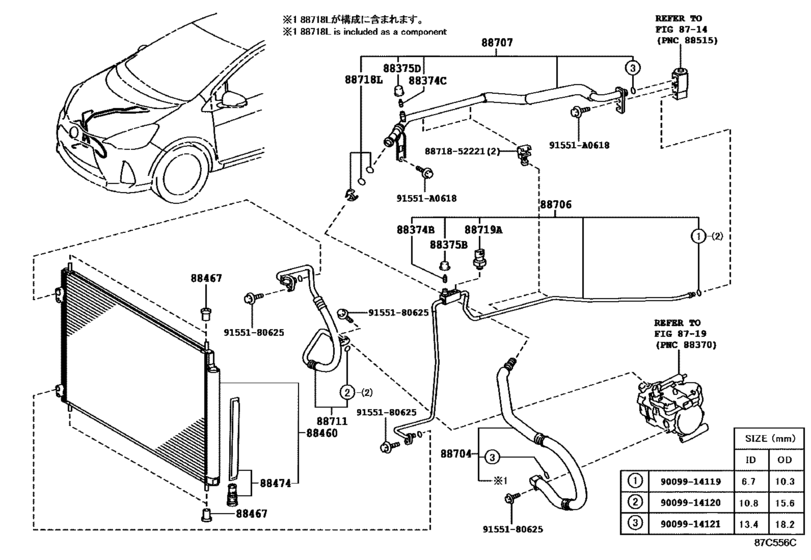

| 16716-28010 |
Cushion, Fan Shroud |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88374-30010 |
Valve, Service, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88460-52170 |
Condenser Assy, Cooler |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88474-47030 |
Dryer, Cooler |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88704-52260 |
Hose Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88706-52600 |
Pipe Sub-Assy, Liquid |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88706-52650 |
Pipe Sub-Assy, Liquid |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88707-52340 |
Pipe Sub-Assy, Suction |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88711-52420 |
Hose, Cooler Refrigerant Discharge, No.1 |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88718-52221 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88718-52280 |
Clamp, Piping |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 88719-33020 |
Sensor, Airconditioner Pressure |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 91551-80625 |
Bolt(For Camshaft Housing Set) |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
| 91551-A0618 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([12.2011 - ] (1112- )) |
