NHP10

Toyota AQUA · 2011 · 3,868 parts · 191 categories

← Back to categories

3,868 items

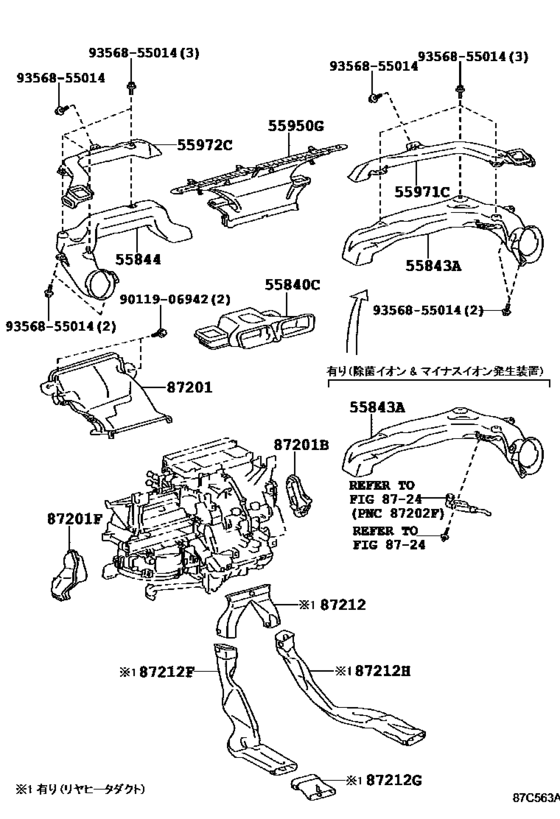

Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- )) 17

#	OEM	Part name
55840	55840-52120	Duct Assy, Heater To Register, No.6
55843	55843-52380	Duct, Heater To Register, No.1
55843	55843-52390	Duct, Heater To Register, No.1
55844	55844-52280	Duct, Heater To Register, No.2
55950	55950-52180	Nozzle Assy, Defroster
55971	55971-52090	Duct, Side Defroster Nozzle, No.1
55972	55972-52090	Duct, Side Defroster Nozzle, No.2
87201	87201-52180	Duct Sub-Assy, Air, No.1
87201	87211-52110	Duct Sub-Assy, Air, No.1
87201	87211-52251	Duct Sub-Assy, Air, No.2
87201	87211-52120	Duct Sub-Assy, Air, No.2
87212	87215-52050	Duct, Air, Rear No.1
87212	87213-52070	Duct, Air, Rear No.2
87212	87216-52040	Duct, Air, Rear No.3
87212	87212-52100	Duct, Air, Rear No.1
9011906942	90119-06942	BOLT WWASHER
9356855014	93568-55014	Screw

OEM	Part name	Category
55840-52120	Duct Assy, Heater To Register, No.6	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55843-52380	Duct, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55843-52390	Duct, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55844-52280	Duct, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55950-52180	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55971-52090	Duct, Side Defroster Nozzle, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
55972-52090	Duct, Side Defroster Nozzle, No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87201-52180	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87211-52110	Duct Sub-Assy, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87211-52120	Duct Sub-Assy, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87211-52251	Duct Sub-Assy, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87212-52100	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87213-52070	Duct, Air, Rear No.2	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87215-52050	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
87216-52040	Duct, Air, Rear No.3	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
90119-06942	BOLT WWASHER	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([12.2011 - ] ｴｱﾀﾞｸﾄ (1112- ))
