NHP10

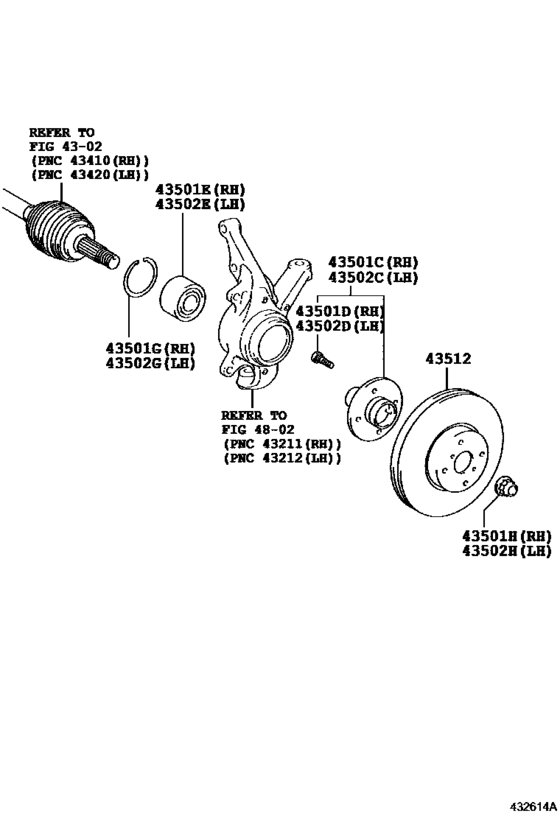

Front Axle Hub ([12.2011 - ] (1112- )) 8
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-52030 | Hub Sub-Assy, Front Axle |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90363-40079 | Bearing (For Front Axle Hub) |
| 43501 | 90369-40009 | Bearing (For Front Axle Hub) |
| 43501 | 90521-80003 | Ring, Hole Snap (For Front Axle Hub Rh) |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-52120 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43502-52030 | Hub Sub-Assy, Front Axle | Front Axle Hub ([12.2011 - ] (1112- )) |
| 43512-52120 | Disc, Front | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90363-40079 | Bearing (For Front Axle Hub) | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90369-40009 | Bearing (For Front Axle Hub) | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90521-80003 | Ring, Hole Snap (For Front Axle Hub Rh) | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([12.2011 - ] (1112- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([12.2011 - ] (1112- )) |
