NHP10

Toyota AQUA · 2011 · 3,868 parts · 191 categories

← Back to categories

3,868 items

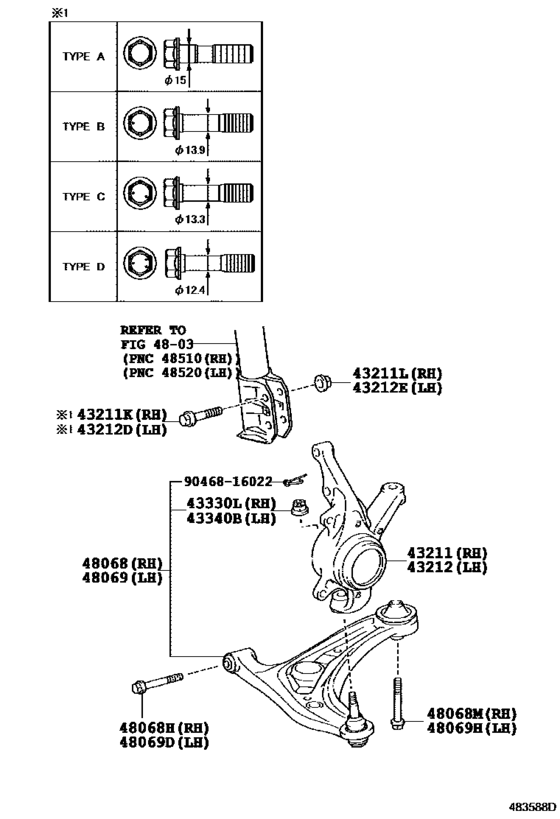

Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- )) 16

#	OEM	Part name
43211	43211-52050	Knuckle, Steering, Rh
43211	90109-15001	Bolt (For Rear Axle Carrier)
43211	90109-15002	Bolt (For Steering Knuckle Rh)
43211	90109-15003	Bolt (For Steering Knuckle Rh)
43211	90109-15004	Bolt (For Steering Knuckle Rh)
43211	90179-15004	Nut (For Steering Knuckle Rh)
43212	43212-52050	Knuckle, Steering, Lh
43330	90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)
48068	48068-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-59155	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90119-14151	Bolt(For Front Suspension Lower Arm No.2 Rh)
48068	90119-14144	Bolt(For Front Suspension Lower Arm No.2 Rh)
48069	48069-59135	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9046816022	90468-16022	CLIP

OEM	Part name	Category
43211-52050	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
43212-52050	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48068-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48068-59155	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48069-59135	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
48069-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90109-15001	Bolt (For Rear Axle Carrier)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90109-15002	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90109-15003	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90109-15004	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90119-14144	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90119-14151	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90179-15004	Nut (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))
90468-16022	CLIP	Front Axle Arm & Steering Knuckle ([12.2011 - ] (1112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 191
Collected: 2026-08-02
