| 23818-47020 |
Pipe, Fuel Vapor Feed |

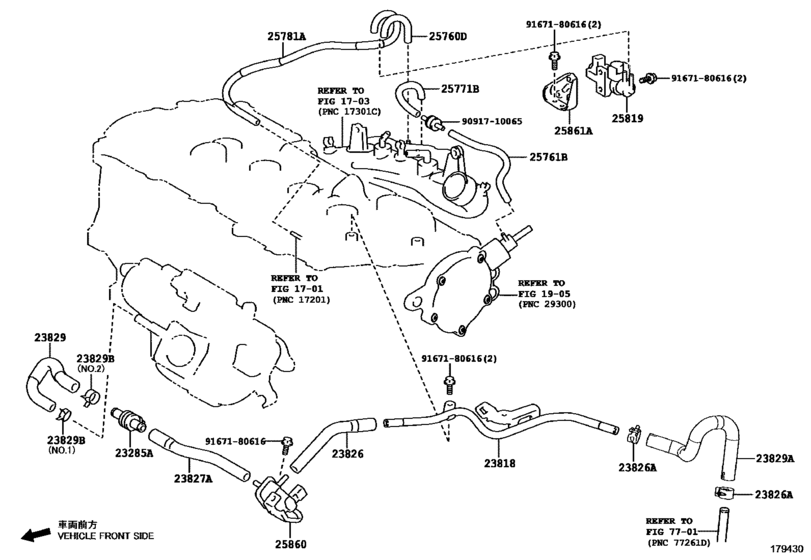

Vacuum Piping ([10.2016 - ] (1610- )) |
| 23826-0Y080 |
Hose, Fuel Vapor Feed |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 23826-47090 |
Hose, Fuel Vapor Feed, No.1 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 23827-47130 |
Hose, Fuel Vapor Feed, No.2 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 23829-47010 |
Hose, Fuel Vapor Feed, No.3 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25748-25030 |
Valve, Check, No.1 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25748-36010 |
Valve, Check, No.1 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25761-47010 |
Hose, Vaccum Transmitting, No.1 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25771-47010 |
Hose, Vaccum Transmitting, No.2 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25781-47010 |
Hose, Vacuum Transmitting, No.3 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25791-47010 |
Hose Assy, Vacuum Transmitting, No.4 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25819-0W010 |
Valve Assy, Vacuum Regulating |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25819-F0010 |
Valve Assy, Vacuum Regulating |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25860-47050 |
Valve Assy, Vacuum Switching, No.1 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 25862-47010 |
Bracket, Vacuum Switching Valve, No.2 |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 90917-10065 |
Valve, Check |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 91671-80616 |
BOLT FLANGE |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 96136-41901 |
Clip Or Clamp(For Ventilation Hose) |
Vacuum Piping ([10.2016 - ] (1610- )) |
| 96136-42201 |
Clip(For Ventilation Hose No.2) |
Vacuum Piping ([10.2016 - ] (1610- )) |
