NGX50

Toyota C-HR · 2016 · 2,944 parts · 178 categories

← Back to categories

2,944 items

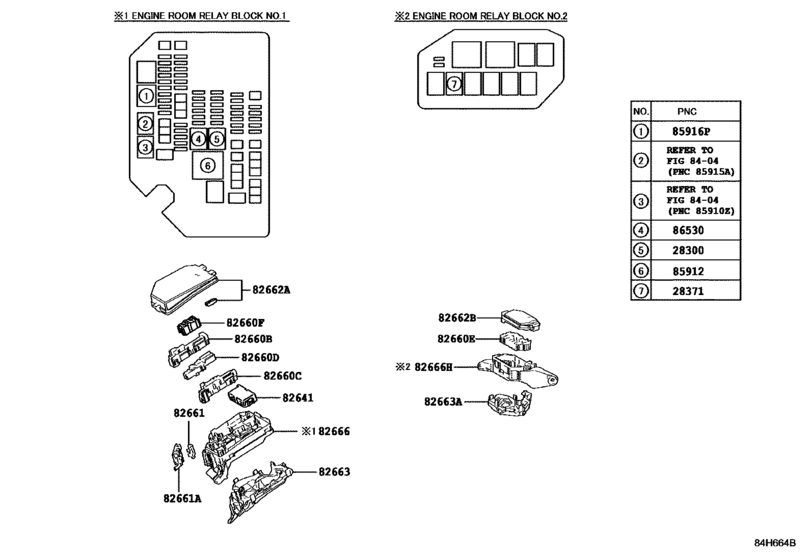

Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- )) 18

#	OEM	Part name
28300	28300-21020	Relay Assy, Starter
82641	82641-47050	Relay, Integration No.1
82660	82660-F4030	Block Assy, Relay
82660	82660-F4010	Block Assy, Relay
82660	82660-F4020	Block Assy, Relay
82660	82660-F4060	Block Assy, Relay
82660	82660-F4040	Block Assy, Relay
82661	82661-F4020	Cover, Relay Block, No.1
82661	82661-F4010	Cover, Relay Block, No.2
82662	82662-F4010	Cover, Relay Block, Upper, No.1
82662	82662-F4030	Cover, Relay Block, Upper, No.2
82662	82662-F4050	Cover, Relay Block, Upper, No.1
82663	82663-F4010	Cover, Relay Block, Lower
82663	82663-F4020	Cover, Relay Block, Lower, No.2
82666	82666-F4030	Holder, Connector
82666	82666-F4070	Holder, Connector, No.2
85912	90080-87031	Relay Assy (For Heater Blower Motor)
85916	90080-87021	Relay, Lamp Cut

OEM	Part name	Category
28300-21020	Relay Assy, Starter	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82641-47050	Relay, Integration No.1	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82660-F4010	Block Assy, Relay	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82660-F4020	Block Assy, Relay	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82660-F4030	Block Assy, Relay	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82660-F4040	Block Assy, Relay	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82660-F4060	Block Assy, Relay	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82661-F4010	Cover, Relay Block, No.2	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82661-F4020	Cover, Relay Block, No.1	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82662-F4010	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82662-F4030	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82662-F4050	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82663-F4010	Cover, Relay Block, Lower	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82663-F4020	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82666-F4030	Holder, Connector	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
82666-F4070	Holder, Connector, No.2	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
90080-87021	Relay, Lamp Cut	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))
90080-87031	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- ))

Source: Public OEM parts-catalog data
Variants: 2 / 30
Category: 178
Collected: 2026-08-02
