Search › Model › NGX50

NGX50

Toyota C-HR · 2016 · 2,944 parts · 178 categories

2,944 items

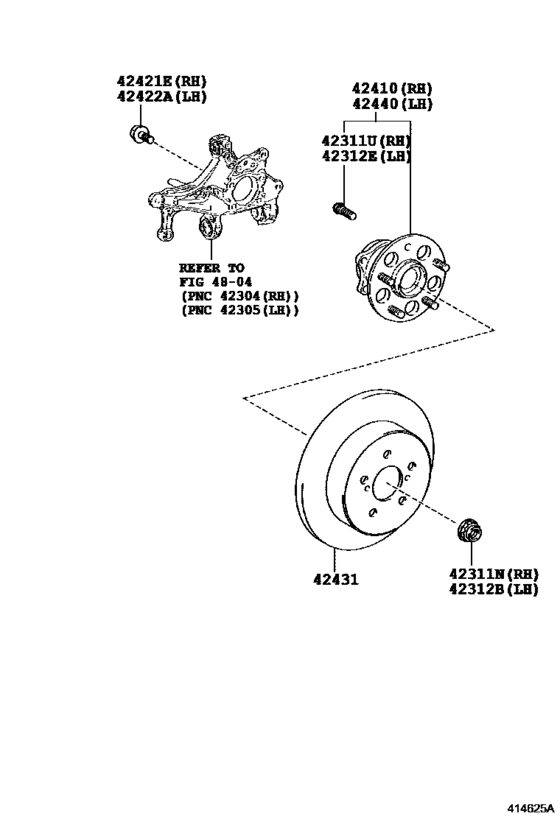

Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50) 22

#	OEM	Part name
4437	04439-F4010	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
4438	04429-F4010	Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh
41336	41336-F4030	Cover, Rear Drive Shaft Dust, Rh
42311	90177-22001	Nut (For Axle Shaft)
42311	90942-02082	Bolt, Hub
42330	42330-F4011	Shaft Assy, Rear Drive, Rh
42330	90311-37004	Oil Seal, Rear Drive Shaft
42330	90311-37007	SEAL TYPE T OIL
42340	42340-F4011	Shaft Assy, Rear Drive, Lh
42341	43425-F4040	Ring, Snap (For Rear Drive Shaft Rh)
42346	42345-F4050	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
42346	42345-F4060	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
42347	42345-F4040	Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)
42347	42345-F4070	Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)
42360	42360-F4010	Joint Assy, Rear Drive Shaft Inboard, Rh
42360	43425-F4030	Ring, Shaft Snap (For Rear Drive Shaft Inboard Joint Rh)
42370	42370-F9010	Shaft Assy, Rear Drive Outboard Joint, Rh
42380	42370-F9020	Shaft Assy, Rear Drive Outboard Joint, Lh
42410	42410-F4010	Hub & Bearing Assy, Rear Axle, Rh
42421	90105-12350	Bolt (For Rear Axle Bearing Case Rh)
42421	90105-W0164	Bolt (For Rear Axle Bearing Case Rh)
42431	42431-78010	Disc, Rear

OEM	Part name	Category
04429-F4010	Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
04439-F4010	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
41336-F4030	Cover, Rear Drive Shaft Dust, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42330-F4011	Shaft Assy, Rear Drive, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42340-F4011	Shaft Assy, Rear Drive, Lh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42345-F4040	Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42345-F4050	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42345-F4060	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42345-F4070	Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42360-F4010	Joint Assy, Rear Drive Shaft Inboard, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42370-F9010	Shaft Assy, Rear Drive Outboard Joint, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42370-F9020	Shaft Assy, Rear Drive Outboard Joint, Lh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42410-F4010	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
42431-78010	Disc, Rear	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
43425-F4030	Ring, Shaft Snap (For Rear Drive Shaft Inboard Joint Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
43425-F4040	Ring, Snap (For Rear Drive Shaft Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90105-12350	Bolt (For Rear Axle Bearing Case Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90105-W0164	Bolt (For Rear Axle Bearing Case Rh)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90177-22001	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90311-37004	Oil Seal, Rear Drive Shaft	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90311-37007	SEAL TYPE T OIL	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
90942-02082	Bolt, Hub	Rear Axle Shaft & Hub ([10.2016 - ] (1610- )NGX50)
