NGX50

Toyota C-HR · 2016 · 2,944 parts · 178 categories
NGX50 ×

← Back to categories

2,944 items

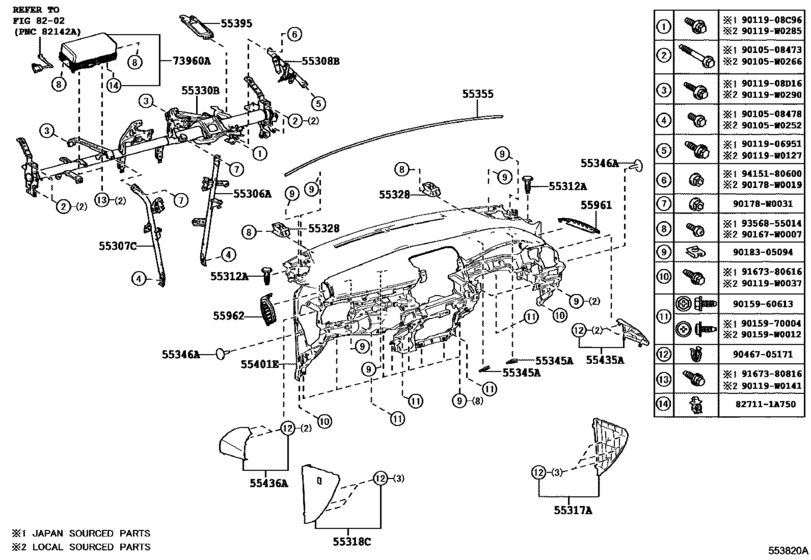

Instrument Panel & Glove Compartment ([10.2016 - ] (1610- )RHD) 80
#OEMPart name
55011 55011-F4020-B0 Garnish Sub-Assy, Instrument Panel, No.1
55011 55011-F4020-B1 Garnish Sub-Assy, Instrument Panel, No.1
55012 55012-F4020-B0 Garnish Sub-Assy, Instrument Panel, No.2
55012 55012-F4020-B1 Garnish Sub-Assy, Instrument Panel, No.2
55054 55054-47010 Stopper Sub-Assy, Glove Compartment Door
55306 55306-F4030 Brace Sub-Assy, Instrument Panel, No.1
55307 55307-F4020 Brace Sub-Assy, Instrument Panel, No.2
55308 55308-F4030 Brace Sub-Assy, Instrument Panel To Cowl, No.3
55312 52161-02030 Piece, Rear Bumper
55312 52161-16010 Clip
55317 55317-F4010-C0 Panel, Instrument Side, Rh
55318 55318-F4010-C0 Panel, Instrument Side, Lh
55318 55318-F4020-C0 Panel, Instrument Side, Lh
55328 55328-F4030 Pin, Instrument Panel, No.1
55330 55330-F4030 Reinforcement Assy, Instrument Panel
55345 55345-12060 Clip, Instrument Panel, No.1
55346 90467-05161-C0 Clip
55346 90467-W0001-C0 Clip (For Rear Seat Back)
55355 55355-F4010 Cushion, Instrument Panel, No.1
55395 55395-F4020 Bracket, Instrument Panel To Pedal
55401 55401-F4040-C1 Pad Sub-Assy, Instrument Panel Safety
55401 55401-F4040-C2 Pad Sub-Assy, Instrument Panel Safety
55404 55404-F4020-C0 Panel Sub-Assy, Instrument Cluster Finish
55404 55404-F4030-C0 Panel Sub-Assy, Instrument Cluster Finish
55405 55405-F4030 Panel Sub-Assy, Instrument Cluster Finish, Center
55406 55406-F4020 Panel Sub-Assy, Instrument Cluster Finish, Lower Center
55406 90467-06165-C3 Clip(For Panel, Instrument Cluster Finish)
55408 55408-F4010-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1
55409 55409-F4010-C0 Panel Sub-Assy, Instrument Panel Speaker, No.2
55410 55410-F4020 Panel Assy, Instrument Cluster Finish
55412 90467-05172 Clip, Instrument Panel, No.1
55414 55414-F4040 Bezel, Starter Switch
55433 55433-F4020-C0 Panel, Instrument Panel Finish, Lower No.2
55434 55434-F4020-C0 Panel, Instrument Panel Finish, Lower Center
55435 55435-F4010-C0 Panel, Instrument Panel Finish, End Rh
55436 55436-F4010-C0 Panel, Instrument Panel Finish, End Lh
55440 55440-F4020 Box Assy, Instrument Panel
55470 55470-F4030-C0 Garnish Assy, Instrument Cluster Finish Panel
55521 55521-02100 Cover, Stereo Opening - STEREO OPENING, NO.2
55521 55521-02080 Cover, Stereo Opening, No.2
55539 55539-28160-C0 Cover, Spare Switch Hole
55539 55539-28160-C1 Cover, Spare Switch Hole
55539 55539-02100-C1 Cover, Spare Switch Hole
55545 55545-F4020-C0 Cover, Fuse Box Opening
55550 55550-F4020-C0 Door Assy, Glove Compartment
55557 55557-78010 Cushion(For Glove Compartment Door)
55606 55606-F4030 Cover Sub-Assy, Instrument Panel Under, No.1
55606 55606-F4040 Cover Sub-Assy, Instrument Panel Under, No.1
55607 55607-F4030 Cover Sub-Assy, Instrument Panel Under, No.2
55607 55607-F4040 Cover Sub-Assy, Instrument Panel Under, No.2
55650 55650-F4020 Register Assy, Instrument Panel, No.1
55660 55660-F4020 Register Assy, Instrument Panel, No.2
55670 55670-F4020 Register Assy, Instrument Panel, Center
55961 55961-F4020-C0 Nozzle, Side Defroster, No.1
55962 55962-F4020-C0 Nozzle, Side Defroster, No.2
58916 58916-F4020 Mat, Box Bottom
73900 73901-F4020 Air Bag Assy, Instrument Panel, Lower No.1
73960 73960-F4010 Air Bag Assy, Instrument Panel Passenger W/o Door
73997 73997-F4020-C0 Door, Instrument Panel Air Bag, Lower No.1
90119 90119-W0037 Bolt, W/washer
90119 90119-W0127 New Genuine Part
90119 90119-W0141 New Genuine Part
90159 90159-W0012 New Genuine Part
90167 90167-W0007 New Genuine Part
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
90178 90178-W0031 Nut (For Transmission Control Cable)
827111 82711-1A750 Clamp, No.1(For Back Door Lock Control Cable)
9011908 90119-08C96 New Genuine Part
9011908 90119-08D16 Bolt, Instrument Panel
9010508473 90105-08473 Bolt, Instrument Panel
9010508478 90105-08478 New Genuine Part
9011906951 90119-06951 BOLT WWASHER
9015960613 90159-60613 New Genuine Part
9015970004 90159-70004 SCREW WWASHER
9018305094 90183-05094 NUT
9046705171 90467-05171 Clip, Instrument Panel
9167380616 91673-80616 Bolt, W/washer
9167380816 91673-80816 Bolt (For Transmission Control Cable Bracket)
9356855014 93568-55014 Screw
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
