Search › Model › NGX10

NGX10

Toyota C-HR · 2016 · 2,631 parts · 171 categories

2,631 items

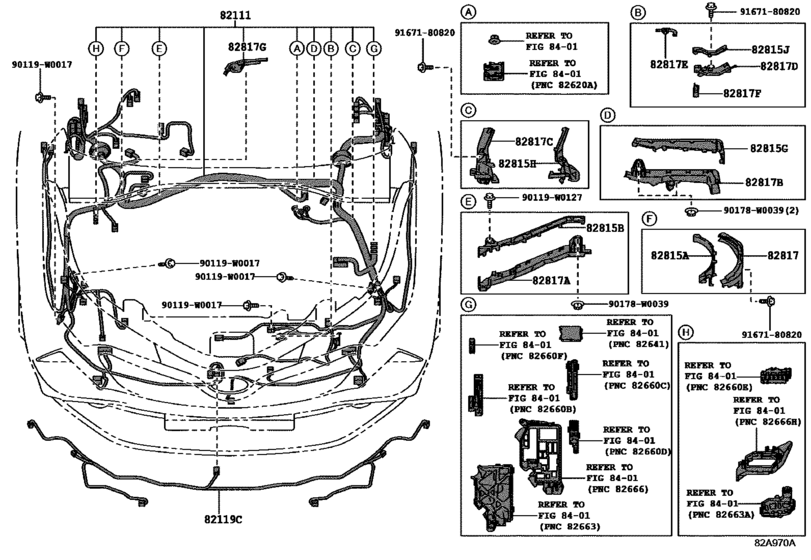

Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD) 21

#	OEM	Part name
82111	82111-F4590	Wire, Engine Room Main
82111	82111-F4G40	Wire, Engine Room Main
82119	82119-F4010	Wire, Engine Room, No.5
82815	82815-F4240	Cover, Wiring Harness Protector
82815	82815-F4250	Cover, Wiring Harness Protector
82815	82815-F4260	Cover, Wiring Harness Protector No.5
82815	82815-F4270	Cover, Wiring Harness Protector No.6
82815	82815-F4280	Cover, Wiring Harness Protector, No.7
82817	82817-F4270	Protector, Wiring Harness, No.1
82817	82817-F4280	Protector, Wiring Harness, No.2
82817	82817-F4290	Protector, Wiring Harness, No.3
82817	82817-F4300	Protector, Wiring Harness, No.4
82817	82817-F4310	Protector, Wiring Harness, No.5
82817	82817-F4320	Protector, Wiring Harness, No.6
82817	82817-F4470	Protector, Wiring Harness, No.7
82817	82817-F4530	Protector, Wiring Harness, No.8
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
90119	90119-W0127	New Genuine Part
90178	90178-W0039	New Genuine Part
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
82111-F4590	Wire, Engine Room Main	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82111-F4G40	Wire, Engine Room Main	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82119-F4010	Wire, Engine Room, No.5	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82815-F4240	Cover, Wiring Harness Protector	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82815-F4250	Cover, Wiring Harness Protector	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82815-F4260	Cover, Wiring Harness Protector No.5	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82815-F4270	Cover, Wiring Harness Protector No.6	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82815-F4280	Cover, Wiring Harness Protector, No.7	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4270	Protector, Wiring Harness, No.1	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4280	Protector, Wiring Harness, No.2	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4290	Protector, Wiring Harness, No.3	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4300	Protector, Wiring Harness, No.4	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4310	Protector, Wiring Harness, No.5	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4320	Protector, Wiring Harness, No.6	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4470	Protector, Wiring Harness, No.7	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
82817-F4530	Protector, Wiring Harness, No.8	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
90119-W0127	New Genuine Part	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
90178-W0039	New Genuine Part	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([10.2016 - ] ENGINE ROOM (1610- )RHD)
