Search › Model › NGX10
NGX10

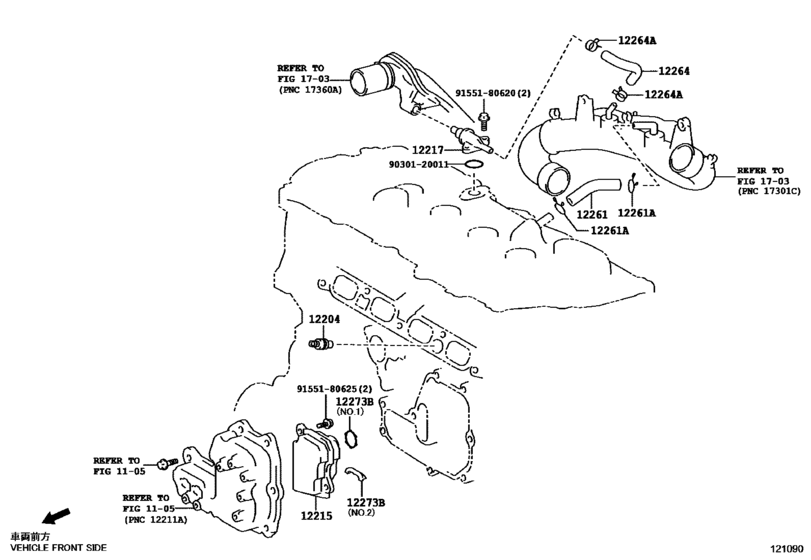

Ventilation Hose ([10.2016 - ] (1610- )) 12
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-47080 | Valve Sub-Assy, Ventilation |
| 12215 | 12215-47010 | Separator, Case |
| 12217 | 12217-47010 | Ejector, Ventilation |
| 12261 | 12261-47110 | Hose, Ventilation |
| 12261 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12264 | 12264-47010 | Hose, Ventilation, No.4 |
| 12264 | 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) |
| 12273 | 12273-47010 | Gasket, Oil Separator |
| 12273 | 12273-47020 | Gasket, Oil Separator |
| 9030120011 | 90301-20011 | New Genuine Part |
| 9155180620 | 91551-80620 | Bolt |
| 9155180625 | 91551-80625 | Bolt(For Camshaft Housing Set) |
| OEM | Part name | Category |
|---|---|---|
| 12204-47080 | Valve Sub-Assy, Ventilation | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12215-47010 | Separator, Case | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12217-47010 | Ejector, Ventilation | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12261-47110 | Hose, Ventilation | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12264-47010 | Hose, Ventilation, No.4 | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12273-47010 | Gasket, Oil Separator | Ventilation Hose ([10.2016 - ] (1610- )) |
| 12273-47020 | Gasket, Oil Separator | Ventilation Hose ([10.2016 - ] (1610- )) |
| 90301-20011 | New Genuine Part | Ventilation Hose ([10.2016 - ] (1610- )) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2016 - ] (1610- )) |
| 91551-80620 | Bolt | Ventilation Hose ([10.2016 - ] (1610- )) |
| 91551-80625 | Bolt(For Camshaft Housing Set) | Ventilation Hose ([10.2016 - ] (1610- )) |
| 96137-41901 | Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE) | Ventilation Hose ([10.2016 - ] (1610- )) |
