Search › Model › NGX10

NGX10

Toyota C-HR · 2016 · 2,631 parts · 171 categories

2,631 items

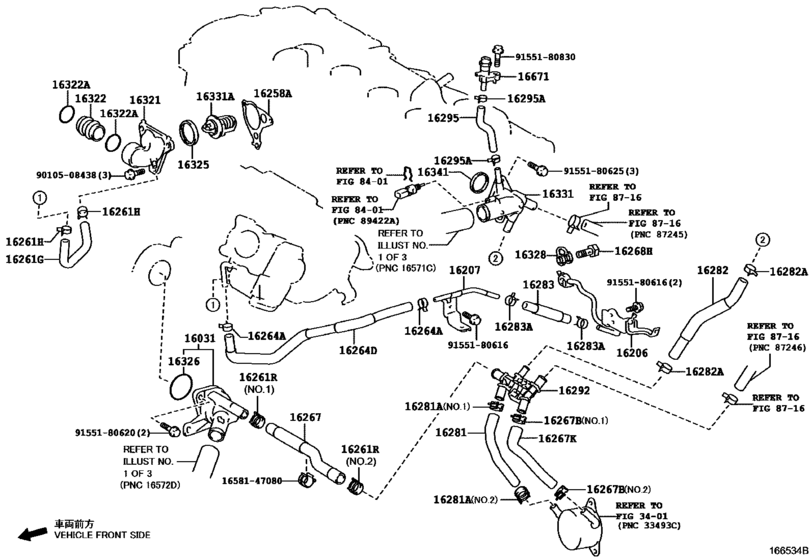

Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT) 37

#	OEM	Part name
16031	16031-47030	Water Inlet Sub-Assy, W/thermostat
16206	16206-47010	Pipe Sub-Assy, Water By-Pass
16207	16207-47010	Pipe Sub-Assy, Water By-Pass, No.2
16258	16258-47010	Gasket(For Heater Return)
16261	16261-47140	Hose, Water By-Pass, No.1
16261	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90466-W0007	Clip(For Water By-Pass Hose No.1)
16261	96136-42501	Clip(For Ventilation Hose)
16261	96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-47060	Hose, Water By-Pass, No.2
16267	16267-47030	Hose, Water By-Pass, No.3
16267	96136-42201	Clip(For Ventilation Hose No.2)
16267	16267-0Y070	Hose, Water By-Pass, No.3
16268	90401-14003	Bolt, Union(For Oil Cooler)
16281	16281-0Y050	Hose, Water By-Pass, No.4
16282	16282-47030	Hose, Water By-Pass, No.5
16282	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16283	16283-47040	Hose, Water By-Pass, No.6
16292	87251-12060	Joint, Water Hose
16295	16295-47030	Hose, Water By-Pass, No.7
16295	90467-15022	Clip Or Clamp(For Ventilation Hose)
16321	16321-47040	Inlet, Water
16322	16322-47010	Pipe, Water Inlet
16322	96761-35031	Ring, O(For Water Inlet Pipe)
16325	16325-36040	Gasket, Water Inlet Housing, No.1
16326	16326-47020	Gasket, Water Inlet Housing, No.2
16328	16328-47010	Gasket, Water Inlet Pipe
16331	16331-47050	Outlet, Water
16331	90916-03154	Thermostat
16341	16341-47030	Gasket, Water Outlet
16671	16671-47010	Valve, Water
1658147080	16581-47080	Clamp, Hose(For Water Hose)
9010508438	90105-08438	New Genuine Part
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180830	91551-80830	Bolt, Compressor, No.2

OEM	Part name	Category
16031-47030	Water Inlet Sub-Assy, W/thermostat	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16206-47010	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16207-47010	Pipe Sub-Assy, Water By-Pass, No.2	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16258-47010	Gasket(For Heater Return)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16261-47140	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16264-47060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16267-0Y070	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16267-47030	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16281-0Y050	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16282-47030	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16283-47040	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16295-47030	Hose, Water By-Pass, No.7	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16321-47040	Inlet, Water	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16322-47010	Pipe, Water Inlet	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16325-36040	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16326-47020	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16328-47010	Gasket, Water Inlet Pipe	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16331-47050	Outlet, Water	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16341-47030	Gasket, Water Outlet	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16581-47080	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
16671-47010	Valve, Water	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
87251-12060	Joint, Water Hose	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
90105-08438	New Genuine Part	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
90401-14003	Bolt, Union(For Oil Cooler)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
90466-W0007	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
90916-03154	Thermostat	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
91551-80616	BOLT FLANGE	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
91551-80620	Bolt	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
91551-80830	Bolt, Compressor, No.2	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96136-42201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)
96761-35031	Ring, O(For Water Inlet Pipe)	Radiator & Water Outlet ([10.2016 - ] ENGINE SIDE (1610- )8NRFTS..CVT)

Source: Public OEM parts-catalog data
Variants: 2 / 60
Category: 171
Collected: 2026-08-02
