NGX10

Toyota C-HR · 2016 · 2,631 parts · 171 categories

2,631 items

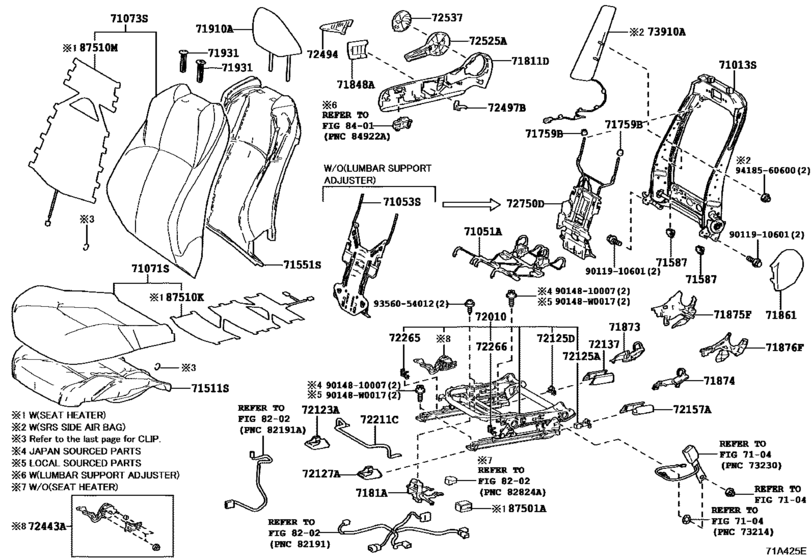

Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD) 51

#	OEM	Part name
71013	71013-F4010	Frame Sub-Assy, Front Seat Back, Rh
71051	71051-F4010	Spring Sub-Assy, Front Seat Cushion, Rh
71053	71053-F4010	Spring Sub-Assy, Front Seat Back, Rh
71071	71071-F4060-B1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-F4090-E1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-F4100-C2	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-F4010-B3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-F4020-B3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-F4050-E4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-F4060-C5	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-F4010	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-F4010	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-F4020	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-F4010	Protector, Front Seat Back Edge
71759	71759-F4010	Hook, Front Seat Back
71811	71811-F4010-C0	Shield, Front Seat Cushion, Rh
71811	71811-F4050-C0	Shield, Front Seat Cushion, Rh
71811	71811-F4040-C1	Shield, Front Seat Cushion, Rh
71848	71848-F4010-C1	Cap, Seat Adjuster Cover, Rh
71861	71861-F4010-C1	Shield, Front Seat Cushion, Inner Rh
71873	71873-F4010	Shield, Front Seat Cushion, Lower Rh
71874	71873-F4020	Shield, Front Seat Cushion, Lower Lh
71875	71875-F4010-C1	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71876	71875-F4020-C1	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71910	71910-F4010-C2	Headrest Assy, Front Seat
71910	71910-F4030-C1	Headrest Assy, Front Seat
71910	71910-F4030-E0	Headrest Assy, Front Seat
71931	71930-F4010-C0	Support, Front Seat Headrest
71931	71931-F4010-C0	Support, Front Seat Headrest
72010	72010-F4010	Adjuster Assy, Front Seat, Rh
72123	72123-F4010	Cover, Seat Track Bracket, Outer Front Rh
72125	72125-F4030	Cover, Seat Track, Upper Rear
72125	72125-F4040	Cover, Seat Track, Upper Rear No.2
72137	72137-F4010	Cover, Seat Track, Outer Rh
72157	72157-F4010	Cover, Seat Track Bracket, Inner Rh
72211	72211-F4010	Handle, Seat Track Adjusting
72265	72265-F4020	Cover, Seat Track Upper Rail, Rh
72443	72443-F4010	Gear, Vertical Adjuster, Rh
72494	72494-F4010-C1	Handle, Vertical Adjusting, Rh
72497	72498-F4010-C0	Cover, Vertical Adjuster Bracket, Rh
72525	72525-F4010-C1	Handle, Reclining Adjuster Release, Rh
72537	72551-F4010-C1	Cover, Reclining Hinge Outer, Rh
72750	72750-F4010	Adjuster Assy, Lumbar Support, Rh
73910	73910-F4010	Air Bag Assy, Front Seat, Rh
87501	87501-F4010	Control Sub-Assy, Seat Heater, Rh
87510	87510-F4010	Heater Assy, Front Seat Cushion, Rh
87510	87530-F4010	Heater Assy, Front Seat Back, Rh
9011910601	90119-10601	BOLT W-WASHER
9014810007	90148-10007	SCREW HEXALOBULAR
9356054012	93560-54012	Screw
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71013-F4010	Frame Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71051-F4010	Spring Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71053-F4010	Spring Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71071-F4060-B1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71071-F4090-E1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71071-F4100-C2	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71073-F4010-B3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71073-F4020-B3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71073-F4050-E4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71073-F4060-C5	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71511-F4010	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71551-F4010	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71551-F4020	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71587-F4010	Protector, Front Seat Back Edge	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71759-F4010	Hook, Front Seat Back	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71811-F4010-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71811-F4040-C1	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71811-F4050-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71848-F4010-C1	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71861-F4010-C1	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71873-F4010	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71873-F4020	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71875-F4010-C1	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71875-F4020-C1	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71910-F4010-C2	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71910-F4030-C1	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71910-F4030-E0	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71930-F4010-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
71931-F4010-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72010-F4010	Adjuster Assy, Front Seat, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72123-F4010	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72125-F4030	Cover, Seat Track, Upper Rear	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72125-F4040	Cover, Seat Track, Upper Rear No.2	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72137-F4010	Cover, Seat Track, Outer Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72157-F4010	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72211-F4010	Handle, Seat Track Adjusting	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72265-F4020	Cover, Seat Track Upper Rail, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72443-F4010	Gear, Vertical Adjuster, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72494-F4010-C1	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72498-F4010-C0	Cover, Vertical Adjuster Bracket, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72525-F4010-C1	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72551-F4010-C1	Cover, Reclining Hinge Outer, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
72750-F4010	Adjuster Assy, Lumbar Support, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
73910-F4010	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
87501-F4010	Control Sub-Assy, Seat Heater, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
87510-F4010	Heater Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
87530-F4010	Heater Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
90119-10601	BOLT W-WASHER	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
90148-10007	SCREW HEXALOBULAR	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
93560-54012	Screw	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([10.2016 - ] DRIVER SEAT (1610- )RHD)
