Search › Model › NGX10
NGX10

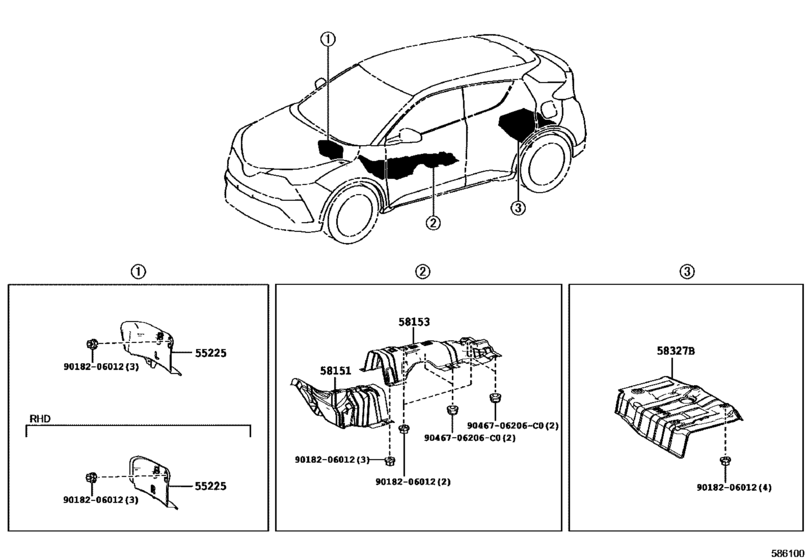

Floor Insulator ([10.2016 - ] (1610- )NGX10) 6
| # | OEM | Part name |
|---|---|---|
| 55225 | 55225-F4020 | Insulator, Dash Panel Heat |
| 58151 | 58151-F4010 | Insulator, Front Floor Heat, No.1 |
| 58153 | 58153-F4010 | Insulator, Front Floor Heat, No.2 |
| 58327 | 58327-F4010 | Insulator, Main Muffler Heat |
| 9018206012 | 90182-06012 | NUT WWASHER |
| 9046706206 | 90467-06206-C0 | Clip, Rear Bumper Side |
| OEM | Part name | Category |
|---|---|---|
| 55225-F4020 | Insulator, Dash Panel Heat | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
| 58151-F4010 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
| 58153-F4010 | Insulator, Front Floor Heat, No.2 | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
| 58327-F4010 | Insulator, Main Muffler Heat | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
| 90182-06012 | NUT WWASHER | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
| 90467-06206-C0 | Clip, Rear Bumper Side | Floor Insulator ([10.2016 - ] (1610- )NGX10) |
