NGX10

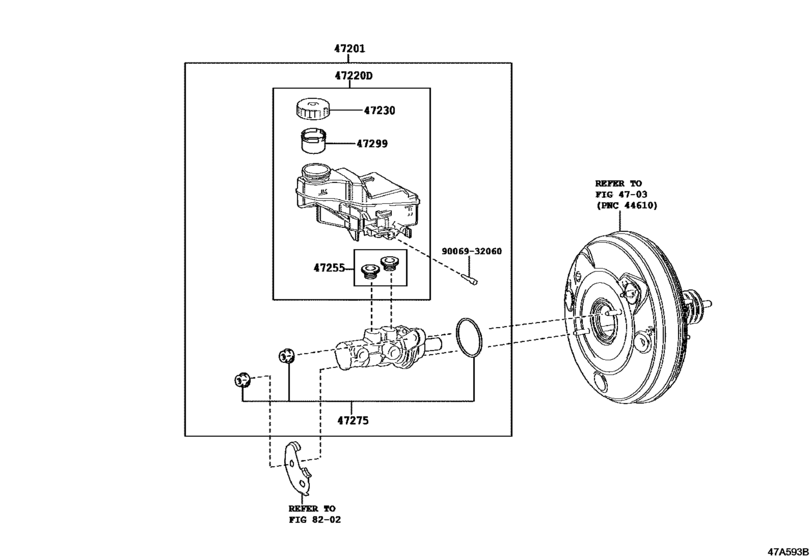

Brake Master Cylinder ([10.2016 - ] (1610- )RHD) 7
| # | OEM | Part name |
|---|---|---|
| 47201 | 47201-F9010 | Cylinder Sub-Assy, Brake Master |
| 47220 | 47220-F9010 | Reservoir Assy, Brake Master Cylinder |
| 47230 | 47230-0D010 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | 47255-09040 | Grommet, Master Cylinder Reservoir |
| 47275 | 47275-09010 | Gasket, Brake Master Cylinder |
| 47299 | 47299-02160 | Strainer, Brake Master Cylinder Reservoir |
| 9006932060 | 90069-32060 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 47201-F9010 | Cylinder Sub-Assy, Brake Master | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 47220-F9010 | Reservoir Assy, Brake Master Cylinder | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 47230-0D010 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 47255-09040 | Grommet, Master Cylinder Reservoir | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 47275-09010 | Gasket, Brake Master Cylinder | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 47299-02160 | Strainer, Brake Master Cylinder Reservoir | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
| 90069-32060 | New Genuine Part | Brake Master Cylinder ([10.2016 - ] (1610- )RHD) |
