Search › Model › NGK15
NGK15

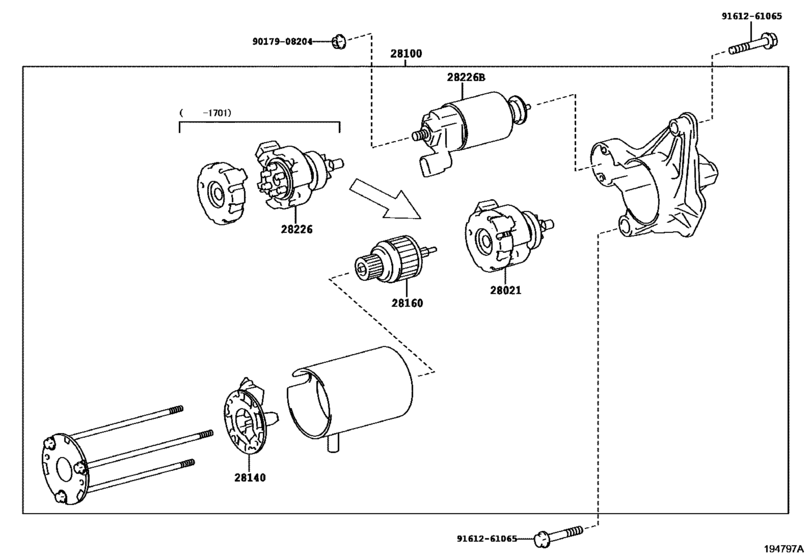

Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) 11
| # | OEM | Part name |
|---|---|---|
| 28021 | 28021-0Y310 | Clutch Sub-Assy, Starter Center Bearing |
| 28100 | 28100-0Y320 | Starter Assy |
| 28140 | 28140-0Y210 | Holder Assy, Starter Brush |
| 28160 | 28160-0Y320 | Armature Assy, Starter |
| 28226 | 28226-0Y210 | Starter Kit, Battery Terminal |
| 28226 | 28021-0Y210 | Clutch Sub-Assy, Starter Center Bearing |
| 28226 | 28226-0Y310 | Starter Kit, Repair Service |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161261065 | 91612-61065 | Bolt(For Transaxle & Engine Setting) |
| 9161261065 | 90119-A0104 | Bolt with Washer |
| OEM | Part name | Category |
|---|---|---|
| 28021-0Y210 | Clutch Sub-Assy, Starter Center Bearing | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28021-0Y310 | Clutch Sub-Assy, Starter Center Bearing | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28100-0Y320 | Starter Assy | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28140-0Y210 | Holder Assy, Starter Brush | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28160-0Y320 | Armature Assy, Starter | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28226-0Y210 | Starter Kit, Battery Terminal | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 28226-0Y310 | Starter Kit, Repair Service | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 90080-18070 | NUT, WWASHER | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 90119-A0104 | Bolt with Washer | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 90179-08204 | Nut | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
| 91612-61065 | Bolt(For Transaxle & Engine Setting) | Starter ([04.2016 - ] 12V 1.0KW,1.2KW (1604- )) |
