NGK15

Toyota ETIOS-LIVA-CROSS · 2010 · 1,898 parts · 152 categories

1,898 items

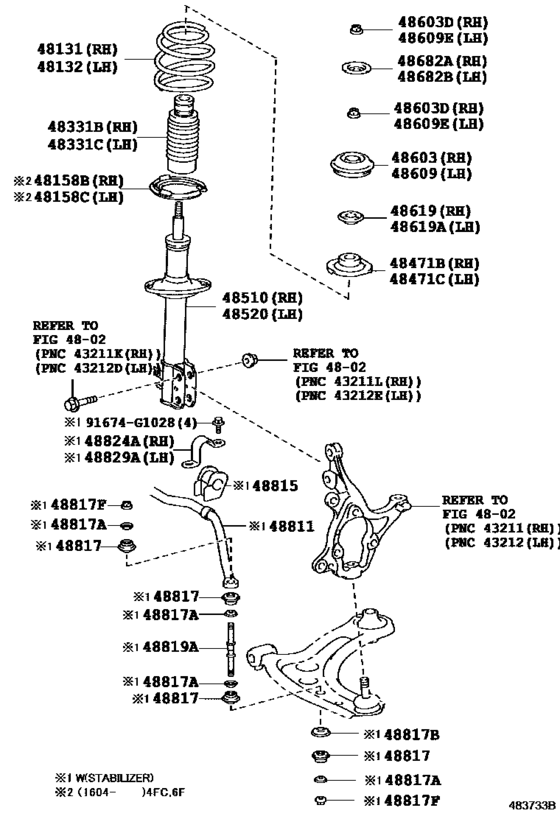

Front Spring & Shock Absorber ([09.2012 - ] (1209- )) 20

#	OEM	Part name
48131	48131-0D770	Spring, Front Coil, Rh
48158	48158-0D130	Insulator, Front Coil Spring, Lower Rh
48331	48331-0D080	Bumper, Front Spring, Rh
48471	48471-0D080	Seat, Front Coil Spring, Upper Rh
48510	48510-0DE90	Absorber Assy, Shock, Front Rh
48603	48609-0D120	Support Sub-Assy, Front Suspension, Rh
48603	90179-12145	Nut
48619	48619-52030	Bearing, Strut Mounting, Rh
48682	48682-0D070	Support, Front Suspension, No.2 Rh
48811	48811-0D140	Bar, Stabilizer, Front
48815	48815-0D160	Bush, Front Stabilizer Bar, No.1
48817	48817-52031	Cushion, Front Stabilizer
48817	48817-52011	Cushion, Front Stabilizer
48817	90948-02179	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02178	Retainer, Cushion, No.2(For Front Stabilizer Bar)
48817	90177-T0007	Nut(For Front Stabilizer Bar)
48817	94182-10800	Nut
48819	48821-52040	Bolt, Front Stabilizer
48824	48824-0D071	Bracket, Front Stabilizer, No.1 Rh
91674	91674-G1028	BOLT FLANGE

OEM	Part name	Category
48131-0D770	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48158-0D130	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48331-0D080	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48471-0D080	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48510-0DE90	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48609-0D120	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48619-52030	Bearing, Strut Mounting, Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48682-0D070	Support, Front Suspension, No.2 Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48811-0D140	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48815-0D160	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48817-52011	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48817-52031	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48821-52040	Bolt, Front Stabilizer	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
48824-0D071	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
90177-T0007	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
90179-12145	Nut	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
90948-02178	Retainer, Cushion, No.2(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
90948-02179	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
91674-G1028	BOLT FLANGE	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
94182-10800	Nut	Front Spring & Shock Absorber ([09.2012 - ] (1209- ))
