Search › Model › NGK15

NGK15

Toyota ETIOS-LIVA-CROSS · 2010 · 1,898 parts · 152 categories

1,898 items

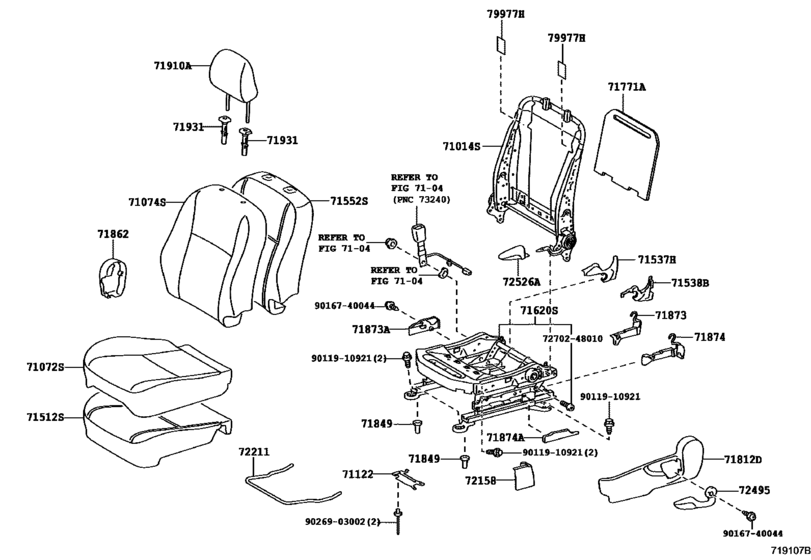

Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- )) 34

#	OEM	Part name
71014	71014-0D230	Frame Sub-Assy, Front Seat Back, Lh
71014	71014-0D170	Frame Sub-Assy, Front Seat Back, Lh
71072	71072-0DG20-C0	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-0DG30-C0	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71073-0DJ50-C0	Cover, Front Seat Back, Rh(For Separate Type)
71074	71074-0D520-C0	Cover, Front Seat Back, Lh(For Separate Type)
71122	71122-0D020	Bracket, Front Seat Cushion, Lh
71512	71512-0D480	Pad, Front Seat Cushion, Lh (For Separate Type)
71537	71537-0D350-C0	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)
71538	71538-0D250-C0	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)
71552	71552-0D460	Pad, Front Seat Back, Lh(For Separate Type)
71552	71552-0D520	Pad, Front Seat Back, Lh(For Separate Type)
71620	72020-0D600	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71771	71771-0D010	Board, Front Seat Back
71812	71812-0D410-C0	Shield, Front Seat Cushion, Lh
71849	71848-0D100	Cap, Seat Adjuster Cover, Rh
71862	71862-0D310-C0	Shield, Front Seat Cushion, Inner Lh
71873	71873-0D400-C0	Shield, Front Seat Cushion, Lower Rh
71873	71873-0D410-C0	Shield, Front Seat Cushion, Lower
71874	71874-0D430-C0	Shield, Front Seat Cushion, Lower Lh
71874	71874-0D440-C0	Shield, Front Seat Cushion, Lower Lh
71910	71910-0DC10-C0	Headrest Assy, Front Seat
71910	71910-0DC10-B0	Headrest Assy, Front Seat
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
72158	72158-0D050-C0	Cover, Seat Track Bracket, Inner Lh
72211	72211-0D240	Handle, Seat Track Adjusting
72495	72495-0D090-C0	Handle, Vertical Adjusting, Lh
72526	72526-0D320-C0	Handle, Reclining Adjuster Release, Lh
79977	79977-0D200	Felt, Seat Back
7270248010	72702-48010	Bracket Sub-assy, Rear Seat Back Striker
9011910921	90119-10921	BOLT WWASHER
9016740044	90167-40044	BOLT
9026903002	90269-03002	RIVET

OEM	Part name	Category
71014-0D170	Frame Sub-Assy, Front Seat Back, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71014-0D230	Frame Sub-Assy, Front Seat Back, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71072-0DG20-C0	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71072-0DG30-C0	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71073-0DJ50-C0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71074-0D520-C0	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71122-0D020	Bracket, Front Seat Cushion, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71512-0D480	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71537-0D350-C0	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71538-0D250-C0	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71552-0D460	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71552-0D520	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71771-0D010	Board, Front Seat Back	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71812-0D410-C0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71848-0D100	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71862-0D310-C0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71873-0D400-C0	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71873-0D410-C0	Shield, Front Seat Cushion, Lower	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71874-0D430-C0	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71874-0D440-C0	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71910-0DC10-B0	Headrest Assy, Front Seat	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71910-0DC10-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71930-44020-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
71931-47010-C0	Support Assy, Rear Seat Legrest	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72020-0D600	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72158-0D050-C0	Cover, Seat Track Bracket, Inner Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72211-0D240	Handle, Seat Track Adjusting	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72495-0D090-C0	Handle, Vertical Adjusting, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72526-0D320-C0	Handle, Reclining Adjuster Release, Lh	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
72702-48010	Bracket Sub-assy, Rear Seat Back Striker	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
79977-0D200	Felt, Seat Back	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
90119-10921	BOLT WWASHER	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
90167-40044	BOLT	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))
90269-03002	RIVET	Front Seat & Seat Track ([09.2014 - ] LH SEAT (1409- ))

Source: Public OEM parts-catalog data
Variants: 2 / 23
Category: 152
Collected: 2026-08-03
