NGK15

Toyota ETIOS-LIVA-CROSS · 2010 · 1,898 parts · 152 categories

1,898 items

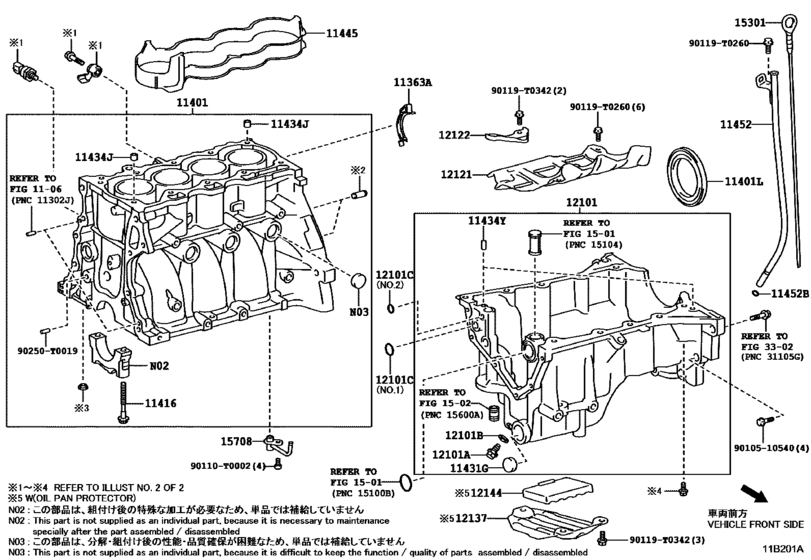

Cylinder Block ([04.2016 - ] (1604- )) 28

#	OEM	Part name
11363	11363-0Y040	Cover, Flywheel Housing Side
11401	11410-09725	Block Sub-Assy, Cylinder
11401	90311-T0074	Seal, Engine Rear Oil
11416	90910-T2013	Bolt(For Crankshaft Bearing Cap Set)
11431	96411-42500	Plug, Tight, No.1
11434	90250-08120	Pin, Straight, No.1
11434	90250-T0018	Pin, Straight(For Clutch Housing Set)
11445	11445-0Y020	Spacer, Cylinder Block Water Jacket
11452	11452-0Y020	Guide, Oil Level Gage
11452	90301-T0060	Ring, O(For Oil Level Gage Guide)
12101	12101-0Y060	Pan Sub-Assy, Oil
12101	90341-12032	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	90301-T0055	Ring, O
12101	90301-T0057	Ring, O(For Oil Pan)
12101	90430-T0023	Gasket No.1(For Oil Pan)
12121	12121-0Y050	Plate, Oil Pan Baffle, No.1
12122	12122-0Y010	Plate, Oil Pan Baffle, No.2
12137	12137-0Y010	Protector, Oil Pan
12144	12144-47020	Silencer, Oil Pan Cover
15301	15301-0Y080	Gage Sub-Assy, Oil Level
15708	15708-0Y040	Nozzle Sub-Assy, Oil, No.1
90105	90105-T0272	New Genuine Part
90110	90110-T0002	Bolt, Oil Nozzle Union
90119	90119-T0260	New Genuine Part
90119	90119-T0342	Bolt (For Transmission Control Cable Bracket)
90250	90250-T0019	Pin, Straight(For Chain Tensioner)
9010510540	90105-10540	New Genuine Part

OEM	Part name	Category
11363-0Y040	Cover, Flywheel Housing Side	Cylinder Block ([04.2016 - ] (1604- ))
11410-09725	Block Sub-Assy, Cylinder	Cylinder Block ([04.2016 - ] (1604- ))
11445-0Y020	Spacer, Cylinder Block Water Jacket	Cylinder Block ([04.2016 - ] (1604- ))
11452-0Y020	Guide, Oil Level Gage	Cylinder Block ([04.2016 - ] (1604- ))
12101-0Y060	Pan Sub-Assy, Oil	Cylinder Block ([04.2016 - ] (1604- ))
12121-0Y050	Plate, Oil Pan Baffle, No.1	Cylinder Block ([04.2016 - ] (1604- ))
12122-0Y010	Plate, Oil Pan Baffle, No.2	Cylinder Block ([04.2016 - ] (1604- ))
12137-0Y010	Protector, Oil Pan	Cylinder Block ([04.2016 - ] (1604- ))
12144-47020	Silencer, Oil Pan Cover	Cylinder Block ([04.2016 - ] (1604- ))
15301-0Y080	Gage Sub-Assy, Oil Level	Cylinder Block ([04.2016 - ] (1604- ))
15708-0Y040	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.2016 - ] (1604- ))
90105-10540	New Genuine Part	Cylinder Block ([04.2016 - ] (1604- ))
90105-T0272	New Genuine Part	Cylinder Block ([04.2016 - ] (1604- ))
90110-T0002	Bolt, Oil Nozzle Union	Cylinder Block ([04.2016 - ] (1604- ))
90119-T0260	New Genuine Part	Cylinder Block ([04.2016 - ] (1604- ))
90119-T0342	Bolt (For Transmission Control Cable Bracket)	Cylinder Block ([04.2016 - ] (1604- ))
90250-08120	Pin, Straight, No.1	Cylinder Block ([04.2016 - ] (1604- ))
90250-T0018	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([04.2016 - ] (1604- ))
90250-T0019	Pin, Straight(For Chain Tensioner)	Cylinder Block ([04.2016 - ] (1604- ))
90301-T0055	Ring, O	Cylinder Block ([04.2016 - ] (1604- ))
90301-T0057	Ring, O(For Oil Pan)	Cylinder Block ([04.2016 - ] (1604- ))
90301-T0060	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([04.2016 - ] (1604- ))
90311-T0074	Seal, Engine Rear Oil	Cylinder Block ([04.2016 - ] (1604- ))
90341-12032	Plug(For Oil Pan Drain)	Cylinder Block ([04.2016 - ] (1604- ))
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([04.2016 - ] (1604- ))
90430-T0023	Gasket No.1(For Oil Pan)	Cylinder Block ([04.2016 - ] (1604- ))
90910-T2013	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([04.2016 - ] (1604- ))
96411-42500	Plug, Tight, No.1	Cylinder Block ([04.2016 - ] (1604- ))
