NGK15

Toyota ETIOS-LIVA-CROSS · 2010 · 1,898 parts · 152 categories

← Back to categories

1,898 items

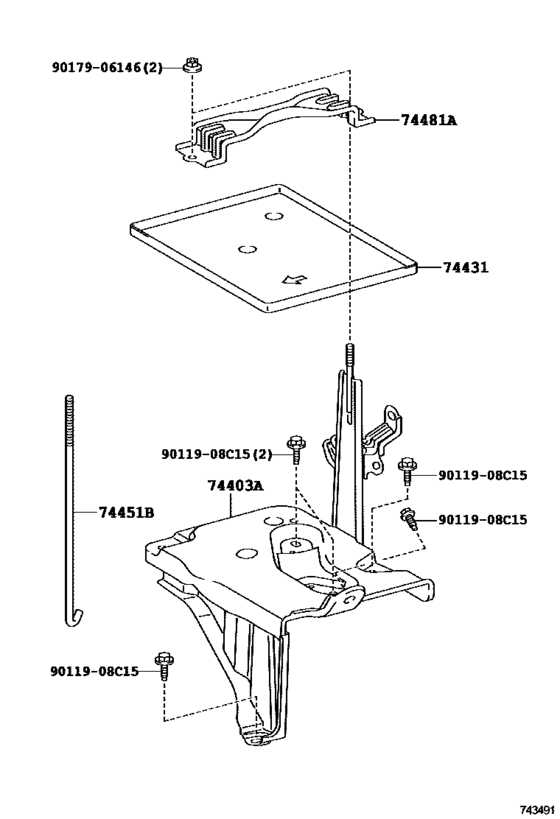

Battery Carrier ([09.2012 - ] (1209- )) 6

#	OEM	Part name
74403	74410-0D230	Carrier Sub-Assy, Battery
74431	74431-0D130	Tray, Battery
74451	74451-0D070	Bolt, Battery Clamp
74481	74481-0D090	Clamp, Battery
9011908	90119-08C15	BOLT WWASHER
9017906146	90179-06146	Nut

OEM	Part name	Category
74410-0D230	Carrier Sub-Assy, Battery	Battery Carrier ([09.2012 - ] (1209- ))
74431-0D130	Tray, Battery	Battery Carrier ([09.2012 - ] (1209- ))
74451-0D070	Bolt, Battery Clamp	Battery Carrier ([09.2012 - ] (1209- ))
74481-0D090	Clamp, Battery	Battery Carrier ([09.2012 - ] (1209- ))
90119-08C15	BOLT WWASHER	Battery Carrier ([09.2012 - ] (1209- ))
90179-06146	Nut	Battery Carrier ([09.2012 - ] (1209- ))
