NGK12

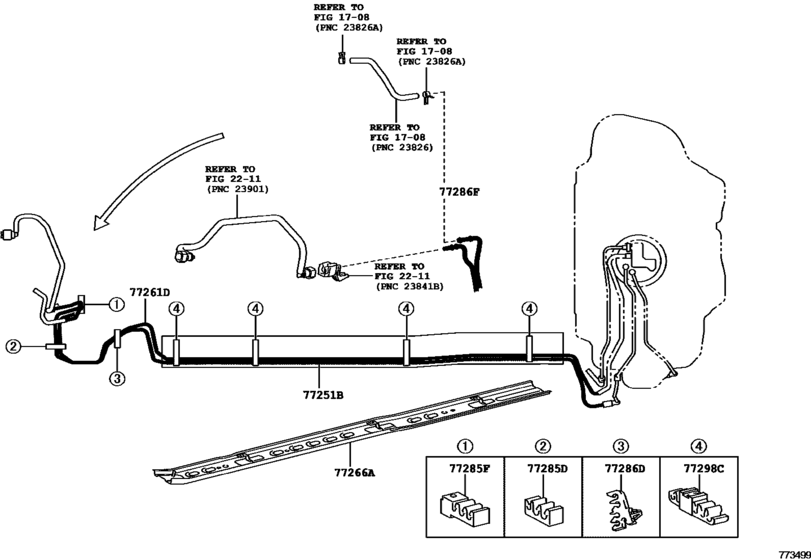

Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) 7
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-0D460 | Tube, Fuel Main |
| 77261 | 77261-0D400 | Tube, Fuel Tank To Canister |
| 77266 | 77266-0D100 | Protector, Fuel Tube, No.1 |
| 77285 | 77285-0D100 | Clamp, Fuel Tube, No.1 |
| 77285 | 77285-0D110 | Clamp, Fuel Tube, No.1 |
| 77286 | 77286-0D060 | Clamp, Fuel Tube, No.2 |
| 77298 | 77298-0D080 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77251-0D460 | Tube, Fuel Main | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77261-0D400 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77266-0D100 | Protector, Fuel Tube, No.1 | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77285-0D100 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77285-0D110 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77286-0D060 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
| 77298-0D080 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([09.2013 - ] FUEL TUBE (1309- )AGT) |
