Search › Model › NGK12

NGK12

Toyota ETIOS-LIVA-CROSS · 2012 · 2,037 parts · 159 categories

2,037 items

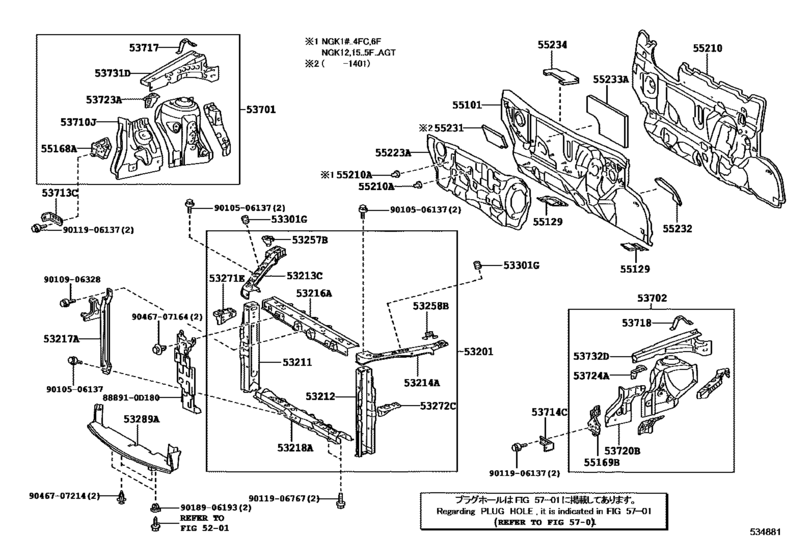

Front Fender Apron & Dash Panel ([09.2012 - ] (1209- )) 49

#	OEM	Part name
53201	53201-0D906	Support Sub-Assy, Radiator
53201	53201-0D908	Support Sub-Assy, Radiator
53211	53211-0D060	Support, Radiator, Rh
53212	53212-0D090	Support, Radiator, Lh
53213	53213-0D080	Support, Radiator, Upper Front
53213	53213-0D270	Support, Radiator, Upper Front
53214	53214-0D080	Support, Radiator, Upper Lh
53216	53216-0D071	Support, Radiator, Upper
53217	53208-0D120	Brace, Hood Lock Support
53218	53218-0D060	Support, Radiator, Lower
53257	53257-0D010	Bracket, Radiator Support To Front Fender
53258	53258-0D010	Bracket, Radiator Support To Front Fender, Lh
53271	53271-0D010	Bracket, Headlamp Mounting, Rh
53272	53272-0D010	Bracket, Headlamp Mounting, Lh
53289	53289-0D090	Cover, Radiator Support Opening
53301	90541-15111	Cushion, Radiator Support
53701	53701-0D120	Apron Sub-Assy, Front Fender, Rh
53701	53701-0D121	Apron Sub-Assy, Front Fender, Rh
53702	53702-0D110	Apron Sub-Assy, Front Fender, Lh
53702	53702-0D111	Apron Sub-Assy, Front Fender, Lh
53710	53710-0D050	Apron Assy, Front Fender, Rh
53713	53713-0D010	Extension, Front Fender Apron, Front Rh
53717	53717-0D160	Plate, Fender Apron, Rh
53718	53718-0D160	Plate, Fender Apron, Lh
53720	53720-0D060	Apron Assy, Front Fender, Lh
53723	53723-0D020	Reinforcement, Front Spring Support, Rh
53724	53724-0D040	Reinforcement, Front Spring Support, Lh
53731	53731-0D040	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-0D040	Member, Front Apron To Cowl Side, Upper Lh
55101	55101-0D740	Panel Sub-Assy, Dash
55129	55129-0D090	Cover, Dash Panel Hole
55129	55139-0D010	Cover, Dash Panel Hole
55168	55168-0D060	Bracket, Front Fender Mounting, Rh
55169	55169-0D060	Bracket, Front Fender Mounting, Lh
55210	55210-0D350	Insulator Assy, Dash Panel
55210	90467-06197	Clip
55223	55223-0D220	Insulator, Dash Panel, Outer
55232	55232-0D020	Sheet, Dash Panel Insulator, Lh
55233	55233-0D040	Sheet, Dash Panel Insulator
55234	55234-0D040	Sheet, Dash Panel Insulator, No.2
888910	88891-0D180	Packing (for Cooler)
9010506137	90105-06137	BOLT, WASHER BASED H
9010906328	90109-06328	BOLT
9010906328	90080-10342	New Genuine Part
9011906137	90119-06137	BOLT
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9018906193	90189-06193	Grommet(For Engine Under Cover)
9046707164	90467-07164	Clip(For Front Fender Apron Seal)
9046707214	90467-07214	Clip, Front Fender Liner

OEM	Part name	Category
53201-0D906	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53201-0D908	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53208-0D120	Brace, Hood Lock Support	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53211-0D060	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53212-0D090	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53213-0D080	Support, Radiator, Upper Front	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53213-0D270	Support, Radiator, Upper Front	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53214-0D080	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53216-0D071	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53218-0D060	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53257-0D010	Bracket, Radiator Support To Front Fender	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53258-0D010	Bracket, Radiator Support To Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53271-0D010	Bracket, Headlamp Mounting, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53272-0D010	Bracket, Headlamp Mounting, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53289-0D090	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53701-0D120	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53701-0D121	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53702-0D110	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53702-0D111	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53710-0D050	Apron Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53713-0D010	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53717-0D160	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53718-0D160	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53720-0D060	Apron Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53723-0D020	Reinforcement, Front Spring Support, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53724-0D040	Reinforcement, Front Spring Support, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53731-0D040	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
53732-0D040	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55101-0D740	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55129-0D090	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55139-0D010	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55168-0D060	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55169-0D060	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55210-0D350	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55223-0D220	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55232-0D020	Sheet, Dash Panel Insulator, Lh	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55233-0D040	Sheet, Dash Panel Insulator	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
55234-0D040	Sheet, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
88891-0D180	Packing (for Cooler)	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90080-10342	New Genuine Part	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90109-06328	BOLT	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90119-06137	BOLT	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90189-06193	Grommet(For Engine Under Cover)	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90467-06197	Clip	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90467-07164	Clip(For Front Fender Apron Seal)	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90467-07214	Clip, Front Fender Liner	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
90541-15111	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([09.2012 - ] (1209- ))
