NGK12

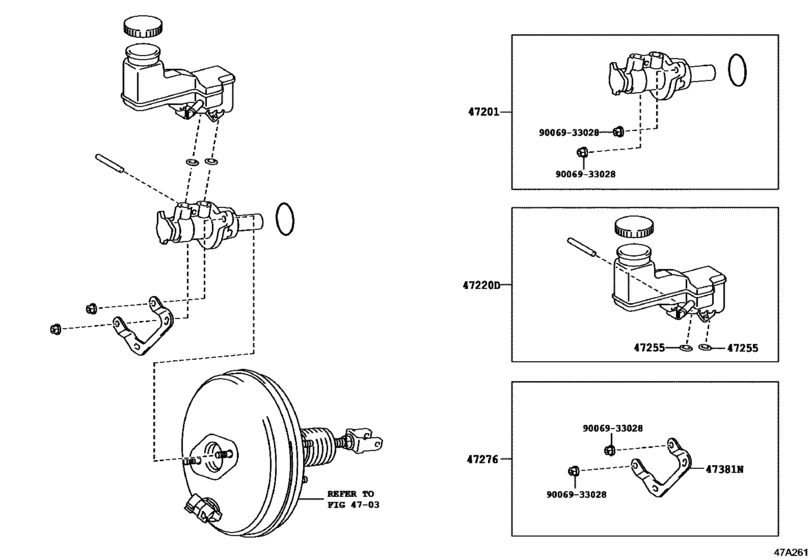

Brake Master Cylinder ([04.2016 - ] (1604- )) 6
| # | OEM | Part name |
|---|---|---|
| 47201 | 47201-09840 | Cylinder Sub-Assy, Brake Master |
| 47220 | 47220-09230 | Reservoir Assy, Brake Master Cylinder |
| 47255 | 47255-09050 | Grommet, Master Cylinder Reservoir |
| 47276 | 47758-09010 | Bracket, Brake Master Cylinder |
| 47381 | 47758-0D020 | Bracket, Tube Clamp |
| 9006933028 | 90069-33028 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 47201-09840 | Cylinder Sub-Assy, Brake Master | Brake Master Cylinder ([04.2016 - ] (1604- )) |
| 47220-09230 | Reservoir Assy, Brake Master Cylinder | Brake Master Cylinder ([04.2016 - ] (1604- )) |
| 47255-09050 | Grommet, Master Cylinder Reservoir | Brake Master Cylinder ([04.2016 - ] (1604- )) |
| 47758-09010 | Bracket, Brake Master Cylinder | Brake Master Cylinder ([04.2016 - ] (1604- )) |
| 47758-0D020 | Bracket, Tube Clamp | Brake Master Cylinder ([04.2016 - ] (1604- )) |
| 90069-33028 | New Genuine Part | Brake Master Cylinder ([04.2016 - ] (1604- )) |
