Search › Model › NGK12

NGK12

Toyota ETIOS-LIVA-CROSS · 2012 · 2,037 parts · 159 categories

2,037 items

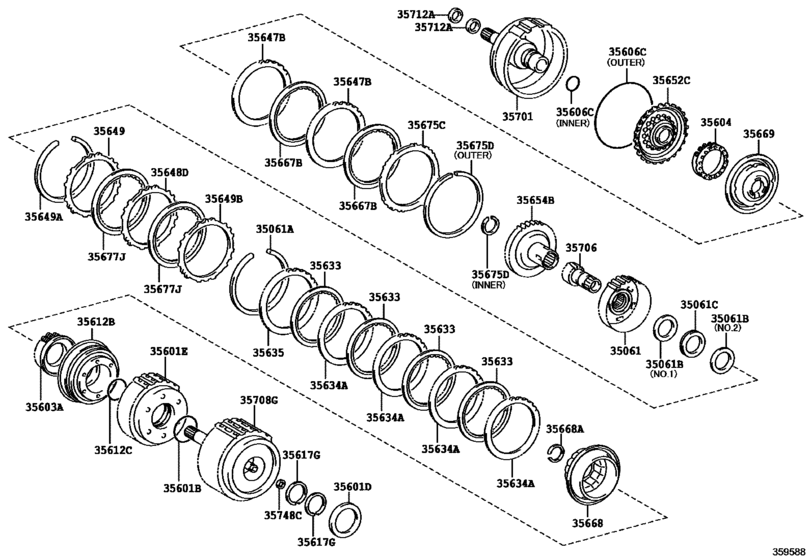

Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC) 50

#	OEM	Part name
35061	35061-0D020	Hub Sub-Assy, Forward Clutch
35061	90520-C0009	Ring, Hole Snap(For Forward Clutch Flange)
35061	35789-0D040	Race, Thrust Bearing(For Forward Clutch Hob)
35061	35789-0D050	Race, Thrust Bearing(For Forward Clutch Hob)
35061	90374-C0010	Bearing, Thrust Needle Roller(For Forward Clutch Hub)
35601	90301-C0049	Ring, O (For Front Clutch Drum)
35601	90374-C0029	Bearing, Thrust Needle Roller (For Front Clutch Drum)
35601	35601-0D010	Drum Sub-Assy, Forward Clutch
35603	35603-0D010	Spring Sub-Assy, Forward Clutch Return
35604	35604-0D010	Spring Sub-Assy, Direct Clutch Return
35606	90301-C0050	Ring, O (For Direct Clutch Piston)
35606	90301-C0053	Ring, O (For Direct Clutch Piston)
35612	35612-0D010	Piston, Forward Clutch
35612	90301-C0045	Ring, O(For Forward Clutch Piston)
35617	35617-0D020	Ring, Clutch Drum Oil Seal
35633	35633-0D010	Disc, Clutch (For Front Clutch)
35634	35634-0D010	Plate, Clutch (For Forward Multiple Disc Clutch)
35635	35635-0D010	Flange, Forward Clutch
35635	35635-0D020	Flange, Forward Clutch
35635	35635-0D030	Flange, Forward Clutch
35635	35635-0D040	Flange, Forward Clutch
35635	35635-0D050	Flange, Forward Clutch
35635	35635-0D060	Flange, Forward Clutch
35635	35635-0D070	Flange, Forward Clutch
35635	35635-0D080	Flange, Forward Clutch
35635	35635-0D090	Flange, Forward Clutch
35647	35647-0D010	Plate, Clutch, No.2
35648	35648-0D010	Plate, Clutch, No.3
35649	35649-0D010	Flange, Reverse Clutch
35649	35649-0D020	Flange, Reverse Clutch
35649	35649-0D030	Flange, Reverse Clutch
35649	35649-0D040	Flange, Reverse Clutch
35649	90520-C0008	Ring, Hole Snap(For Reverse Clutch Flange)
35652	35652-0D010	Piston, Direct Clutch
35654	35654-0D010	Hub, Direct Clutch
35667	35667-0D020	Disk, Clutch, No.2
35668	35668-0D010	Balancer, Clutch, No.1
35668	90520-26070	Ring, Snap(For Clutch Balancer)
35669	35669-0D010	Balancer, Clutch, No.2
35675	35675-0D010	Flange, Direct Clutch
35675	35675-0D020	Flange, Direct Clutch
35675	35675-0D030	Flange, Direct Clutch
35675	90520-25089	Ring, Hole Snap (For Direct Clutch Flange)
35675	90520-C0007	Ring, Hole Snap (For Direct Clutch Flange)
35677	35677-0D010	Disc, Clutch, No.3
35701	35701-0D021	Shaft Sub-Assy, Input
35706	35706-52041	Gear Sub-Assy, Planetary Sun
35708	35708-0D021	Shaft Sub-Assy, Intermediate
35712	35712-0D010	Ring, Input Shaft Oil Seal
35748	35748-0D011	Ring, Intermediate Shaft Oil Seal

OEM	Part name	Category
35061-0D020	Hub Sub-Assy, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35601-0D010	Drum Sub-Assy, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35603-0D010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35604-0D010	Spring Sub-Assy, Direct Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35612-0D010	Piston, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35617-0D020	Ring, Clutch Drum Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35633-0D010	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35634-0D010	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D010	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D020	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D030	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D040	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D050	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D060	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D070	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D080	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35635-0D090	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35647-0D010	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35648-0D010	Plate, Clutch, No.3	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35649-0D010	Flange, Reverse Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35649-0D020	Flange, Reverse Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35649-0D030	Flange, Reverse Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35649-0D040	Flange, Reverse Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35652-0D010	Piston, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35654-0D010	Hub, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35667-0D020	Disk, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35668-0D010	Balancer, Clutch, No.1	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35669-0D010	Balancer, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35675-0D010	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35675-0D020	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35675-0D030	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35677-0D010	Disc, Clutch, No.3	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35701-0D021	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35706-52041	Gear Sub-Assy, Planetary Sun	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35708-0D021	Shaft Sub-Assy, Intermediate	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35712-0D010	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35748-0D011	Ring, Intermediate Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35789-0D040	Race, Thrust Bearing(For Forward Clutch Hob)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
35789-0D050	Race, Thrust Bearing(For Forward Clutch Hob)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90301-C0045	Ring, O(For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90301-C0049	Ring, O (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90301-C0050	Ring, O (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90301-C0053	Ring, O (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90374-C0010	Bearing, Thrust Needle Roller(For Forward Clutch Hub)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90374-C0029	Bearing, Thrust Needle Roller (For Front Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90520-25089	Ring, Hole Snap (For Direct Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90520-26070	Ring, Snap(For Clutch Balancer)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90520-C0007	Ring, Hole Snap (For Direct Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90520-C0008	Ring, Hole Snap(For Reverse Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)
90520-C0009	Ring, Hole Snap(For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([04.2016 - ] U442E (1604- )4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 24
Category: 159
Collected: 2026-08-03
