NGK11

Toyota ETIOS-LIVA-CROSS · 2012 · 2,216 parts · 172 categories

2,216 items

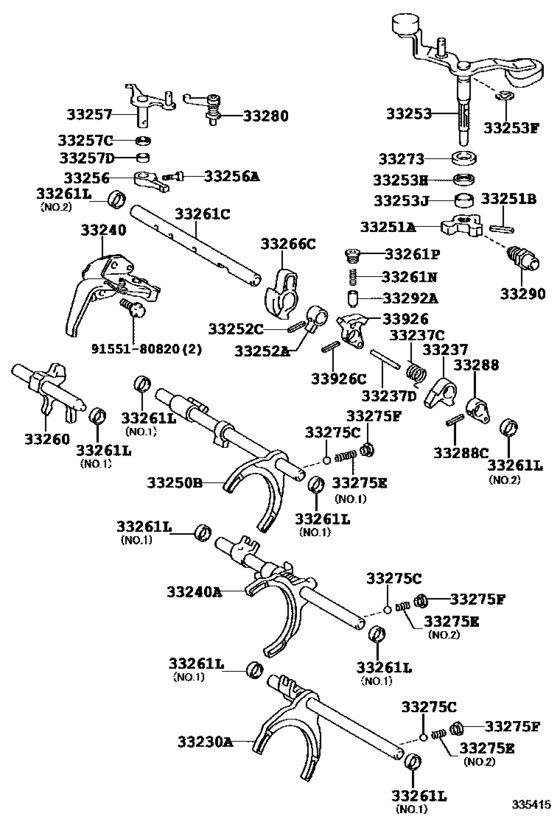

Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F) 50

#	OEM	Part name
33230	33230-0D010	Shaft Assy, Gear Shift Fork, No.1
33237	33237-0D020	Head, Release
33237	33237-20030	Head, Release
33237	90508-27001	Spring, Torsion(For Release Head)
33237	90250-06042	Pin, Straight(For Release Head)
33240	33240-20042	Bracket Assy, Reverse Shift Arm
33240	33240-0D060	Shaft Assy, Gear Shift Fork, No.2
33250	33250-0D180	Shaft Assy, Gear Shift Fork, No.3
33251	33251-0D080	Lever, Shift, Inner No.1
33251	33251-12120	Lever, Shift, Inner No.1
33251	90254-05011	Pin, Slotted Spring (For Shift Inner Lever)
33252	33252-0D050	Lever, Shift, Inner No.2
33252	33252-20060	Lever, Shift, Inner No.2
33252	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
33253	33253-52070	Lever, Shift Outer, No.1
33253	90523-15003	Ring, E(For Shift Outer Lever)
33253	90310-18003	Seal, Oil(For Shift Outer Lever)
33253	90384-18018	Bush(For Shift Outer Lever)
33253	90384-A0020	Bush(For Shift Outer Lever)
33256	33256-0D080	Lever, Select Inner
33256	33256-20030	Lever, Select Inner
33256	90110-08041	Bolt, Set (For Select Inner Lever)
33257	33257-52021	Lever, Select Outer
33257	90310-15005	Seal, Oil(For Outer Select Lever)
33257	90384-15002	Bush, Bimetal Formed(For Outer Select Lever)
33257	90384-A0021	Bush, Bimetal Formed(For Outer Select Lever)
33260	33260-0D010	Shaft Assy, Reverse Shift Fork(Mtm)
33261	33261-0D120	Shaft, Shift & Select Lever
33261	90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-A0022	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90384-A0023	Bush, Bimetal Formed (For Shift & Select Lever Shaft)
33261	90501-11108	Spring, Compression(For Shift & Select Lever Shaft)
33261	90341-16013	Plug, W/head Straight Screw, No.1(For Cylinder Block)
33266	33266-0D050	Plate, Shift Inter Lock
33266	33266-20062	Plate, Shift Inter Lock
33273	90560-18017	Spacer(For Shift Outer Lever)
33275	90360-10003	Ball(For Transmission Oil Pump Cover)
33275	90501-13088	Spring, Compression (For Shift Detent Ball)
33275	90501-13089	Spring, Compression (For Shift Detent Ball)
33275	90501-11110	Spring, Compression (For Shift Detent Ball)
33275	90341-12004	Plug, Oil Pan(For Oil Cooler)
33280	33280-20050	Pin Assy, Reverse Restrict
33288	33288-0D020	Block, Select Stopper
33288	33288-20020	Block, Select Stopper
33290	33290-0D040	Ball Assy, Lock, No.1
33292	33292-20010	Pin, Lock Ball - LOCK BALL NO.2
33926	33926-0D030	Lever, Shift Inner, Front
33926	33926-20011	Lever, Shift Inner, Front
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)

OEM	Part name	Category
33230-0D010	Shaft Assy, Gear Shift Fork, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33237-0D020	Head, Release	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33237-20030	Head, Release	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33240-0D060	Shaft Assy, Gear Shift Fork, No.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33240-20042	Bracket Assy, Reverse Shift Arm	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33250-0D180	Shaft Assy, Gear Shift Fork, No.3	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33251-0D080	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33251-12120	Lever, Shift, Inner No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33252-0D050	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33252-20060	Lever, Shift, Inner No.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33253-52070	Lever, Shift Outer, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33256-0D080	Lever, Select Inner	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33256-20030	Lever, Select Inner	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33257-52021	Lever, Select Outer	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33260-0D010	Shaft Assy, Reverse Shift Fork(Mtm)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33261-0D120	Shaft, Shift & Select Lever	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33266-0D050	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33266-20062	Plate, Shift Inter Lock	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33280-20050	Pin Assy, Reverse Restrict	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33288-0D020	Block, Select Stopper	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33288-20020	Block, Select Stopper	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33290-0D040	Ball Assy, Lock, No.1	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33292-20010	Pin, Lock Ball - LOCK BALL NO.2	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33926-0D030	Lever, Shift Inner, Front	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
33926-20011	Lever, Shift Inner, Front	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90110-08041	Bolt, Set (For Select Inner Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90250-06042	Pin, Straight(For Release Head)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90254-05011	Pin, Slotted Spring (For Shift Inner Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90310-15005	Seal, Oil(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90310-18003	Seal, Oil(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90341-12004	Plug, Oil Pan(For Oil Cooler)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90341-16013	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90360-10003	Ball(For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-14008	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-15002	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-16005	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-18018	Bush(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-A0020	Bush(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-A0021	Bush, Bimetal Formed(For Outer Select Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-A0022	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90384-A0023	Bush, Bimetal Formed (For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90501-11108	Spring, Compression(For Shift & Select Lever Shaft)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90501-11110	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90501-13088	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90501-13089	Spring, Compression (For Shift Detent Ball)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90508-27001	Spring, Torsion(For Release Head)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90523-15003	Ring, E(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
90560-18017	Spacer(For Shift Outer Lever)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Gear Shift Fork & Lever Shaft (Mtm) ([04.2016 - ] EC60 (1604- )6F)
