NGK11

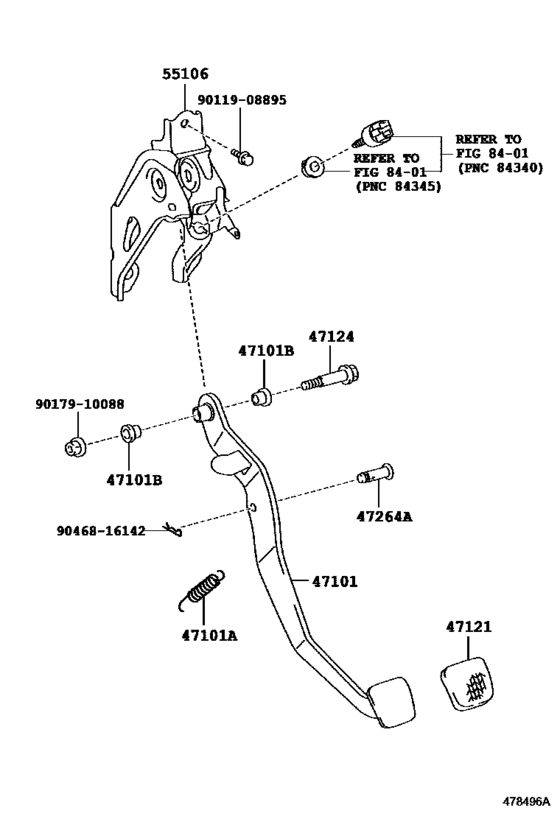

Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) 10
| # | OEM | Part name |
|---|---|---|
| 47101 | 47101-0D530 | Pedal Sub-Assy, Brake |
| 47101 | 90506-16072 | Spring(For Brake Pedal Return) |
| 47101 | 90386-13015 | Bush(For Clutch Pedal) |
| 47121 | 31321-02050 | Pad, Clutch Pedal |
| 47124 | 90109-10167 | Shaft, Clutch Pedal |
| 47264 | 90249-08051 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
| 55106 | 55106-0D091 | Support Sub-Assy, Brake Pedal |
| 9011908895 | 90119-08895 | BOLT WWASHER |
| 9017910088 | 90179-10088 | Nut |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 31321-02050 | Pad, Clutch Pedal | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 47101-0D530 | Pedal Sub-Assy, Brake | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 55106-0D091 | Support Sub-Assy, Brake Pedal | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90109-10167 | Shaft, Clutch Pedal | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90119-08895 | BOLT WWASHER | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90179-10088 | Nut | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90249-08051 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90386-13015 | Bush(For Clutch Pedal) | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
| 90506-16072 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([09.2012 - ] (1209- )MTM) |
