Search › Model › NGJ10

NGJ10

Toyota IQ · 2009 · 2,814 parts · 190 categories

2,814 items

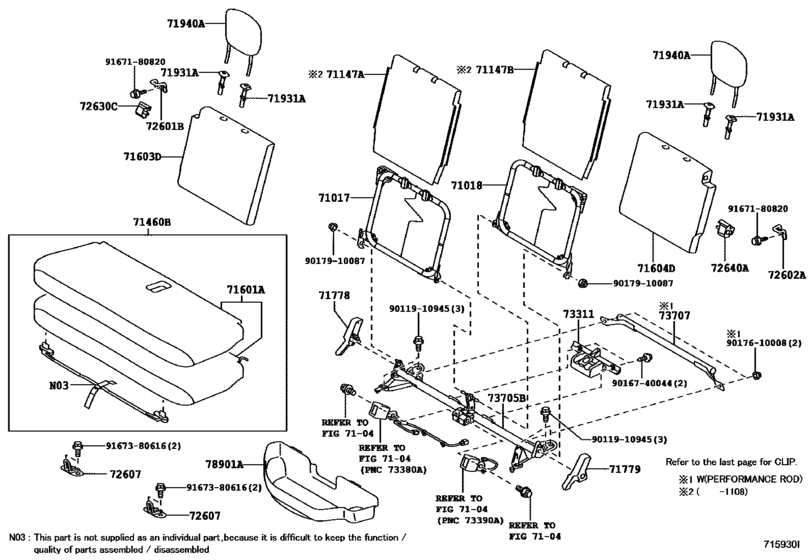

Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- )) 36

#	OEM	Part name
71017	71017-74010	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-74010	Frame Sub-Assy, Rear Seat Back, Lh
71460	71460-74011-B1	Cushion Assy, Rear Seat (For Bench Type)
71460	71460-74011-H0	Cushion Assy, Rear Seat (For Bench Type)
71460	71460-74011-K1	Cushion Assy, Rear Seat (For Bench Type)
71460	71460-74030-H2	Cushion Assy, Rear Seat (For Bench Type)
71601	71601-74011-B3	Pad Sub-Assy, Rear Seat Cushion W/cover
71601	71601-74011-H0	Pad Sub-Assy, Rear Seat Cushion W/cover
71601	71601-74011-K1	Pad Sub-Assy, Rear Seat Cushion W/cover
71603	71603-74011-B3	Pad Sub-Assy, Rear Seat Back W/cover, Rh
71603	71603-74011-H0	Pad Sub-Assy, Rear Seat Back W/cover, Rh
71603	71603-74011-K1	Pad Sub-Assy, Rear Seat Back W/cover, Rh
71604	71604-74011-B3	Pad Sub-Assy, Rear Seat Back W/cover, Lh
71604	71604-74011-H0	Pad Sub-Assy, Rear Seat Back W/cover, Lh
71604	71604-74011-K1	Pad Sub-Assy, Rear Seat Back W/cover, Lh
71778	71778-74010-C0	Cover, Rear Seat Side Hinge Male, Rh
71779	71779-74010-C0	Cover, Rear Seat Side Hinge Male, Lh
71931	71930-44020-C0	Support, Front Seat Headrest
71931	71931-47010-C0	Support Assy, Rear Seat Legrest
71940	71940-74021-C1	Headrest Assy, Rear Seat
71940	71940-74030-C0	Headrest Assy, Rear Seat
72601	72601-74020	Striker Sub-Assy, Rear Seat Back Lock
72602	72602-74010	Striker Sub-Assy, Rear Seat Back Lock, Lh
72607	72607-74010	Striker Sub-Assy, Rear Seat Cushion Lock
72630	72630-74010-C0	Lock Assy, Rear Seat Back, Rh
72640	72640-74010-C0	Lock Assy, Rear Seat Back, Lh
73311	73311-74010-C0	Cover, Rear Seat Belt Buckle, Upper
73705	73705-74010	Bracket Sub-Assy, Cross Anchor
78901	78950-74010	Tray,sub-Assy, Rear Seat Under
78901	78950-74020	Tray,sub-Assy, Rear Seat Under
9011910945	90119-10945	New Genuine Part
9016740044	90167-40044	BOLT
9017610008	90176-10008	NUT
9017910087	90179-10087	Nut (For Front Lower Ball Joint Setting)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
71017-74010	Frame Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71018-74010	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71460-74011-B1	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71460-74011-H0	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71460-74011-K1	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71460-74030-H2	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71601-74011-B3	Pad Sub-Assy, Rear Seat Cushion W/cover	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71601-74011-H0	Pad Sub-Assy, Rear Seat Cushion W/cover	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71601-74011-K1	Pad Sub-Assy, Rear Seat Cushion W/cover	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71603-74011-B3	Pad Sub-Assy, Rear Seat Back W/cover, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71603-74011-H0	Pad Sub-Assy, Rear Seat Back W/cover, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71603-74011-K1	Pad Sub-Assy, Rear Seat Back W/cover, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71604-74011-B3	Pad Sub-Assy, Rear Seat Back W/cover, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71604-74011-H0	Pad Sub-Assy, Rear Seat Back W/cover, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71604-74011-K1	Pad Sub-Assy, Rear Seat Back W/cover, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71778-74010-C0	Cover, Rear Seat Side Hinge Male, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71779-74010-C0	Cover, Rear Seat Side Hinge Male, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71930-44020-C0	Support, Front Seat Headrest	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71931-47010-C0	Support Assy, Rear Seat Legrest	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71940-74021-C1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
71940-74030-C0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
72601-74020	Striker Sub-Assy, Rear Seat Back Lock	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
72602-74010	Striker Sub-Assy, Rear Seat Back Lock, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
72607-74010	Striker Sub-Assy, Rear Seat Cushion Lock	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
72630-74010-C0	Lock Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
72640-74010-C0	Lock Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
73311-74010-C0	Cover, Rear Seat Belt Buckle, Upper	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
73705-74010	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
78950-74010	Tray,sub-Assy, Rear Seat Under	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
78950-74020	Tray,sub-Assy, Rear Seat Under	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
90119-10945	New Genuine Part	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
90167-40044	BOLT	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
90176-10008	NUT	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
90179-10087	Nut (For Front Lower Ball Joint Setting)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
91671-80820	Bolt (For Transmission Control Cable Bracket)	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
91673-80616	Bolt, W/washer	Rear Seat & Seat Track ([11.2008 - ] FABRIC SEAT (0811- ))
