NGJ10

Toyota IQ · 2009 · 2,814 parts · 190 categories

← Back to categories

2,814 items

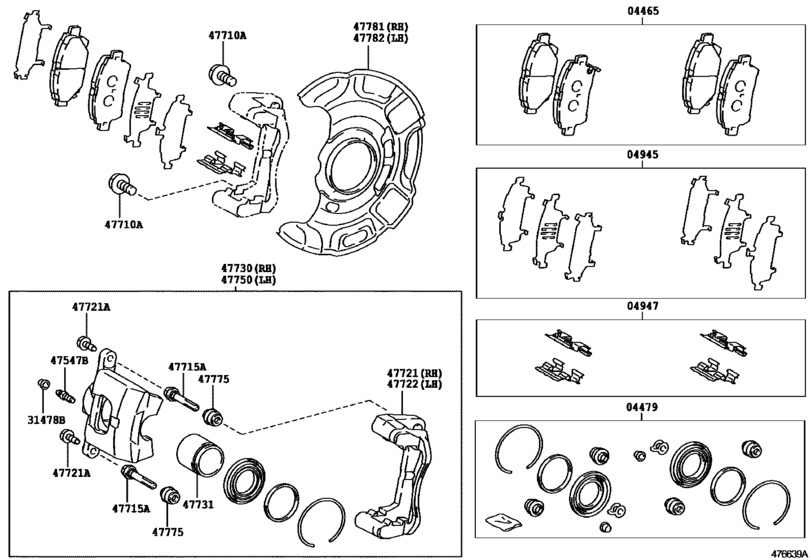

Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- )) 19

#	OEM	Part name
4465	04465-74020	Pad Kit, Disc Brake, Front
4479	04478-74010	Cylinder Kit, Disc Brake, Front
4479	04478-74011	Cylinder Kit, Disc Brake, Front
4945	04945-74010	Shim Kit, Anti Squeal, Front
4947	04947-52010	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-52010	Pin, Front Disc Brake Cylinder Slide
47721	47721-74010	Mounting, Front Disc Brake Cylinder, Rh
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47722	47722-74010	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-74010	Cylinder Assy, Front Disc Brake, Rh
47731	47731-74010	Piston, Front Disc Brake
47750	47750-74010	Cylinder Assy, Disc Brake, Lh
47775	47775-02130	Boot, Bush Dust(For Front Disc Brake)
47775	47775-52010	Boot, Bush Dust(For Front Disc Brake)
47781	47781-74020	Cover, Disc Brake Dust, Front Rh
47782	47782-74020	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-74020	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
04478-74010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
04478-74011	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
04945-74010	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
04947-52010	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47715-52010	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47721-74010	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47722-74010	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47730-74010	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47731-74010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47750-74010	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47775-02130	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47775-52010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47781-74020	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
47782-74020	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- ))
