NGJ10

Toyota IQ · 2009 · 2,814 parts · 190 categories

2,814 items

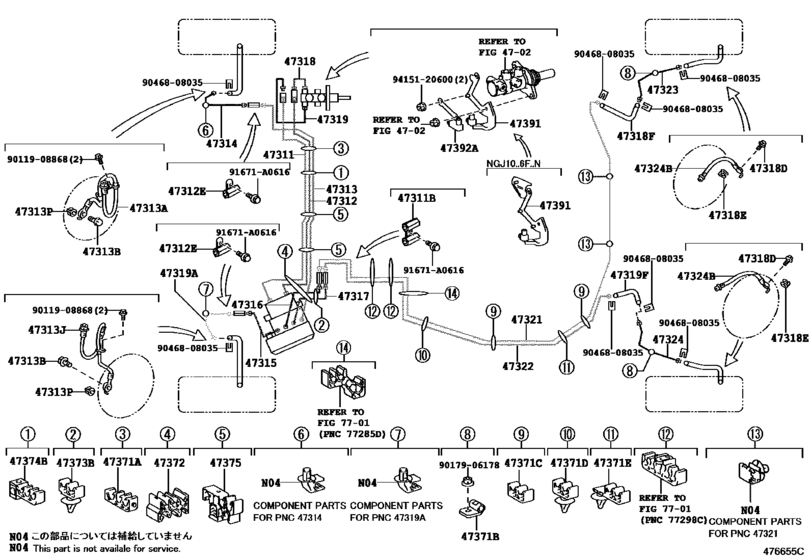

Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD) 40

#	OEM	Part name
47311	47311-74020	Tube, Front Brake, No.1
47311	90412-10285	Way, No.1(For Front Brake Tube)
47312	47312-74020	Tube, Front Brake, No.2
47312	90412-10272	Way, No.1(For Front Brake Tube)
47313	47313-74020	Tube, Front Brake, No.3
47313	90947-02F92	Hose, Flexible, No.1(For Front)
47313	90947-02G70	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02G44	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-74010	Tube, Front Brake, No.4
47315	47315-74020	Tube, Front Brake, No.5
47316	47316-74020	Tube, Front Brake, No.6
47317	47317-74020	Tube, Front Brake, No.7
47318	47318-74030	Tube, Front Brake, No.8
47318	90947-02F94	Hose, Flexible(For Rear Rh)
47319	47319-74010	Tube, Front Brake, No.9
47319	47318-74010	Tube, Front Brake, No.10
47319	90947-02F95	Hose, Flexible(For Rear Lh)
47321	47321-74010	Tube, Rear Brake, No.1
47322	47322-74010	Tube, Rear Brake, No.2
47323	47323-74020	Tube, Rear Brake, No.3
47324	47324-74020	Tube, Rear Brake, No.4
47324	90947-02F96	Hose, Flexible(For Rear Brake Tube, No.2)
47371	90464-00914	Clamp, Brake Tube, No.1
47371	90461-10837	Clamp, Brake Tube, No.6
47371	90464-00904	Clamp, Height Control Tube No.9
47371	90469-07020	Clamp, Brake Tube, No.6
47371	90469-07023	Clamp, Brake Tube, No.9
47372	90464-00916	Clamp, Brake Tube, No.2
47374	90949-01D65	Clamp, Brake Tube, No.4
47375	90949-01D67	Clamp, Brake Tube, No.5
47391	47391-74011	Way, Brake Tube
47392	47392-74010	Way, Brake Tube, No.2
91671	91671-A0616	BOLT FLANGE
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9415120600	94151-20600	New Genuine Part

OEM	Part name	Category
47311-74020	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47312-74020	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47313-74020	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47314-74010	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47315-74020	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47316-74020	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47317-74020	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47318-74010	Tube, Front Brake, No.10	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47318-74030	Tube, Front Brake, No.8	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47319-74010	Tube, Front Brake, No.9	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47321-74010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47322-74010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47323-74020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47324-74020	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47391-74011	Way, Brake Tube	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
47392-74010	Way, Brake Tube, No.2	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90412-10272	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90464-00914	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90464-00916	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90468-08035	CLIP	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90469-07020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90469-07023	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02F92	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02F94	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02F95	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02F96	Hose, Flexible(For Rear Brake Tube, No.2)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02G44	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90947-02G70	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90949-01D65	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
90949-01D67	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
91671-A0616	BOLT FLANGE	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
94151-20600	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] W(REAR DISC BRAKE) (0811- )RHD)
