Search › Model › NGJ10

NGJ10

Toyota IQ · 2009 · 2,814 parts · 190 categories

2,814 items

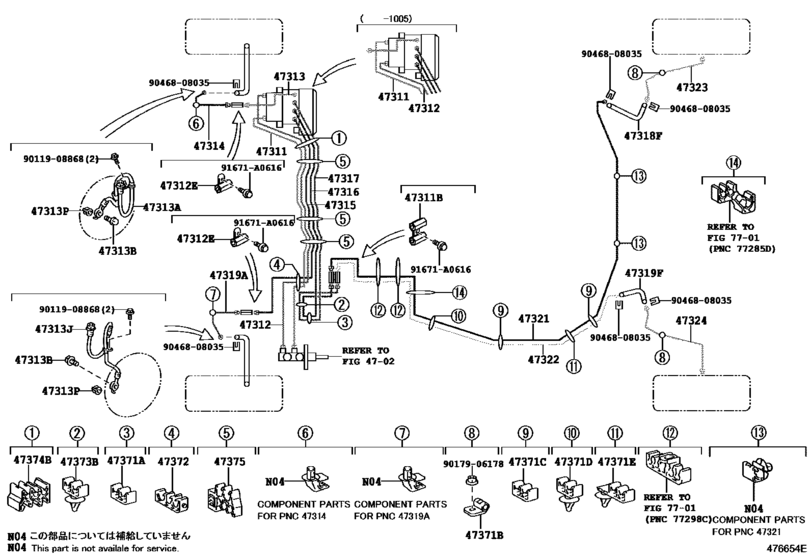

Brake Tube & Clamp ([11.2008 - ] (0811- )LHD) 44

#	OEM	Part name
44510	44050-74013	Actuator Assy, Brake
44510	44050-74014	Actuator Assy, Brake
44510	44050-74023	Actuator Assy, Brake
44510	44050-74024	Actuator Assy, Brake
44546	44546-12110	Cushion, Brake Actuator Bolt
44590	44590-74020	Bracket Assy, Brake Actuator
47311	47311-74011	Tube, Front Brake, No.1
47311	90412-10285	Way, No.1(For Front Brake Tube)
47312	47312-74011	Tube, Front Brake, No.2
47312	90412-10272	Way, No.1(For Front Brake Tube)
47313	47313-74010	Tube, Front Brake, No.3
47313	90947-02F92	Hose, Flexible, No.1(For Front)
47313	90947-02G70	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02G44	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-74010	Tube, Front Brake, No.4
47315	47315-74010	Tube, Front Brake, No.5
47316	47316-74010	Tube, Front Brake, No.6
47317	47317-74010	Tube, Front Brake, No.7
47318	90947-02F94	Hose, Flexible(For Rear Rh)
47319	47318-74010	Tube, Front Brake, No.10
47319	90947-02F95	Hose, Flexible(For Rear Lh)
47321	47321-74010	Tube, Rear Brake, No.1
47322	47322-74010	Tube, Rear Brake, No.2
47323	47323-74010	Tube, Rear Brake, No.3
47323	47323-74020	Tube, Rear Brake, No.3
47324	47324-74010	Tube, Rear Brake, No.4
47324	47324-74020	Tube, Rear Brake, No.4
47371	90464-00904	Clamp, Height Control Tube No.9
47371	90461-10837	Clamp, Brake Tube, No.6
47371	90469-07020	Clamp, Brake Tube, No.6
47371	90469-07023	Clamp, Brake Tube, No.9
47372	90464-00914	Clamp, Brake Tube, No.1
47374	90949-01D52	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4
47375	90949-01D66	Clamp, Fuel Tube, No.2 - BRAKE TUBE, NO.5
91671	91671-A0616	BOLT FLANGE
9011908	90119-08C24	New Genuine Part
4452112050	44521-12050	Collar, Brake Actuator Case, No.1
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part

OEM	Part name	Category
44050-74013	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44050-74014	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44050-74023	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44050-74024	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44521-12050	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44546-12110	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
44590-74020	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47311-74011	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47312-74011	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47313-74010	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47314-74010	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47315-74010	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47316-74010	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47317-74010	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47318-74010	Tube, Front Brake, No.10	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47321-74010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47322-74010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47323-74010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47323-74020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47324-74010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47324-74020	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90119-08C24	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90412-10272	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90464-00914	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90468-08035	CLIP	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90469-07020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90469-07023	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90947-02F92	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90947-02F94	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90947-02F95	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90947-02G44	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90947-02G70	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90949-01D52	Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
90949-01D66	Clamp, Fuel Tube, No.2 - BRAKE TUBE, NO.5	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
91671-A0616	BOLT FLANGE	Brake Tube & Clamp ([11.2008 - ] (0811- )LHD)
