NDE180

Toyota AURIS-COROLLA · 2012 · 3,450 parts · 191 categories

3,450 items

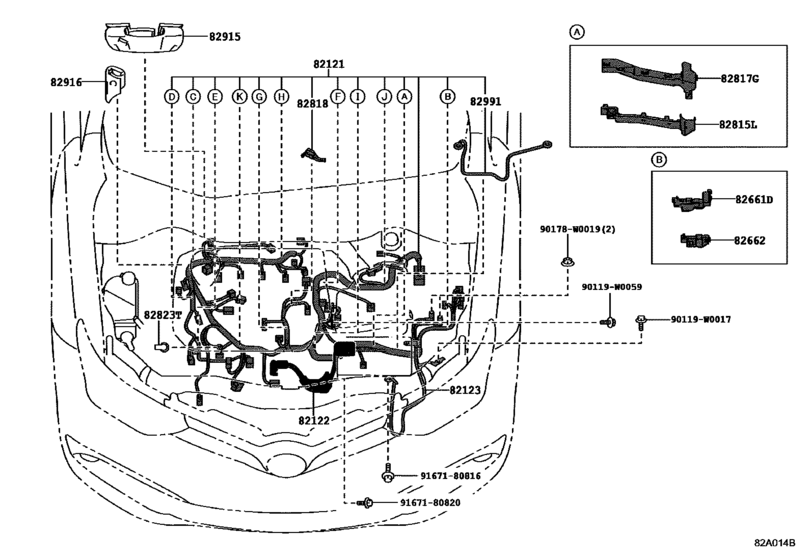

Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180) 20

#	OEM	Part name
82121	82121-0ZC50	Wire, Engine
82121	82121-0ZC60	Wire, Engine
82122	82122-02170	Wire, Engine, No.2
82123	82123-02570	Wire, Engine, No.3
82661	82661-12320	Cover, Relay Block, Side No.1
82662	82662-12C00	Cover, Relay Block, Upper
82815	82815-02370	Cover, Wiring Harness Protector No.6
82817	82817-02B00	Protector, Wiring Harness, No.4
82818	82817-12K60	Protector, Wiring Harness, No.3
82823	82823-22050	Cap, Terminal, No.1
82915	82915-12020	Insulator, Wiring Harness Heat, No.1
82916	82916-12010	Insulator, Wiring Harness Heat, No.2
82991	82991-02030	Wire, Fusible Link Repair
82991	82991-02040	Wire, Fusible Link Repair
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
90119	90119-W0059	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
82121-0ZC50	Wire, Engine	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82121-0ZC60	Wire, Engine	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82122-02170	Wire, Engine, No.2	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82123-02570	Wire, Engine, No.3	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82661-12320	Cover, Relay Block, Side No.1	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82662-12C00	Cover, Relay Block, Upper	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82815-02370	Cover, Wiring Harness Protector No.6	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82817-02B00	Protector, Wiring Harness, No.4	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82817-12K60	Protector, Wiring Harness, No.3	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82915-12020	Insulator, Wiring Harness Heat, No.1	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82916-12010	Insulator, Wiring Harness Heat, No.2	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82991-02030	Wire, Fusible Link Repair	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
82991-02040	Wire, Fusible Link Repair	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
90119-06390	BOLT WWASHER	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
90119-W0017	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
90119-W0059	New Genuine Part	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([05.2015 - ] ENGINE 1/2 (1505- )NDE180)
