NDE180

Toyota AURIS-COROLLA · 2012 · 3,450 parts · 191 categories
NDE180 ×

← Back to categories

3,450 items

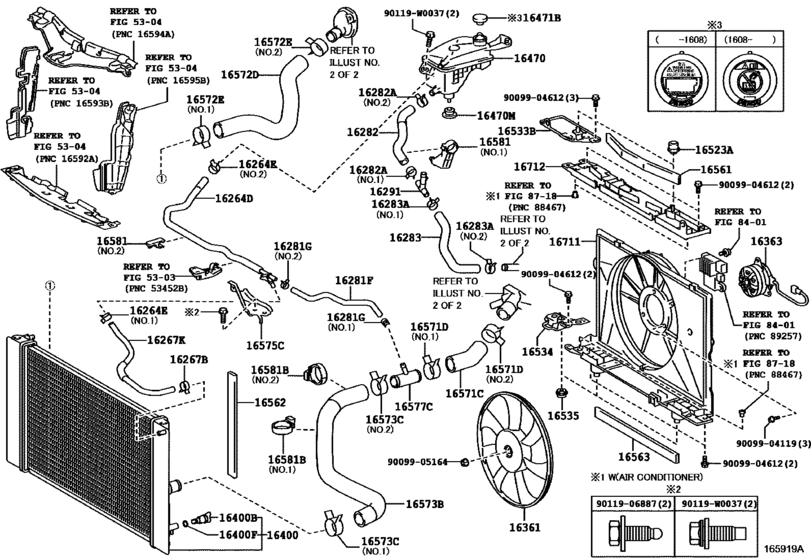

Radiator & Water Outlet ([05.2015 - ] (1505- )1NDTV) 90
#OEMPart name
16027 16027-33010 Pipe Sub-Assy, Turbo Water, No.1
16206 16206-33080 Pipe Sub-Assy, Water By-Pass
16261 16261-0N050 Hose, Water By-Pass
16261 16261-33050 Hose, Water By-Pass
16261 96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96137-41901 Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
16262 16262-0N011 Hose, Water Inlet
16262 16262-33011 Hose, Water Inlet
16262 16263-0N010 Hose, Water Inlet
16262 16263-33030 Hose, Water Inlet
16262 96136-52201 Clip(For Ventilation Hose No.2)
16264 16264-0Y030 Hose, Water By-Pass, No.2
16264 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16264 16264-0N030 Hose, Water By-Pass, No.2
16264 16264-33040 Hose, Water By-Pass, No.2
16267 16267-0N030 Hose, Water By-Pass, No.3
16267 16267-33040 Hose, Water By-Pass, No.3
16267 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16268 90301-20016 Ring, O(For Water By-Pass Pipe)
16281 16281-0N060 Hose, Water By-Pass, No.5
16281 96136-41901 Clip Or Clamp(For Ventilation Hose)
16281 16281-0N070 Hose, Water By-Pass, No.4
16281 16281-33030 Hose, Water By-Pass, No.4
16282 16282-0N040 Hose, Water By-Pass, No.5
16282 90466-W0007 Clip(For Water By-Pass Hose No.1)
16282 96136-42501 Clip(For Ventilation Hose)
16283 16283-0N010 Hose, Water By-Pass, No.6
16283 16282-33090 Hose, Water By-Pass
16283 16283-33070 Hose, Water By-Pass
16283 96136-52501 Clip(For Water By-Pass Hose No.1)
16284 16284-33010 Hose, Turbo Water, No.1
16285 16285-33010 Hose, Turbo Water, No.2
16291 16291-33020 Joint, Water Hose
16304 16304-33030 Outlet Sub-Assy, Water
16321 16321-33040 Inlet, Water
16322 16322-33010 Pipe, Water Inlet
16323 16323-33030 Housing, Water Inlet
16325 16325-33010 Gasket, Water Inlet Housing, No.1
16326 16326-33030 Gasket, Water Inlet Housing, No.2
16341 16341-33020 Gasket, Water Outlet
16347 16347-33010 Gasket, Water By-Pass
16361 16361-0N040 Fan
16363 16363-0N020 Motor, Cooling Fan
16400 16400-0N060 Radiator Assy
16400 16417-0Q040 Plug, Radiator Drain Cock
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 16480-0D030 Tank Assy, Radiator Reserve
16470 90480-18010 Grommet, Radiator Reserve Tank Hose
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-37011 Cap Sub-Assy, Radiator Reserve Tank
16523 16523-0Y030 Cushion, Radiator Support
16533 16505-0N010 Support, Radiator, No.1
16534 16506-0N040 Support, Radiator, No.2
16535 16535-0Y010 Support, Radiator, Lower
16553 16581-33040 Clamp, Hose
16553 16581-33050 Clamp, Hose
16553 16581-33120 Clamp, Hose
16553 16581-33140 Clamp, Hose
16561 16561-0N010 Seal, Radiator To Support, No.1
16562 16561-0N020 Seal, Radiator To Support, No.2
16563 16561-0N030 Seal, Radiator To Support, No.3
16571 16571-0N080 Hose, Radiator, No.1
16571 90467-33006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-0N080 Hose, Radiator, No.2
16572 90466-W0016 Clip, Radiator Hose, No.1
16572 96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)
16573 16573-0N030 Hose, Radiator, No.3
16575 16575-0Y010 Bracket, Water Hose Clamp, No.1
16577 16577-0N010 Pipe, Radiator
16581 16581-0Y010 Clamp, Hose(For Water Hose)
16581 16581-36020 Clamp, Hose(For Radiator Hose)
16581 16581-33020 Clamp, Hose(For Radiator Hose)
16581 16581-33150 Clamp, Hose(For Radiator Hose)
16711 16711-0N041 Shroud, Fan
16712 16712-0N050 Shroud, Fan, No.2
90105 90105-W0090 New Genuine Part
90119 90119-W0037 Bolt, W/washer
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
91551 91551-F0614 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9009904612 90099-04612 Bolt
9009905164 90099-05164 Nut
9011906887 90119-06887 New Genuine Part
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9046400918 90464-00918 New Genuine Part
9155180620 91551-80620 Bolt
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
