NDE180

Toyota AURIS-COROLLA · 2012 · 3,450 parts · 191 categories
NDE180 ×

← Back to categories

3,450 items

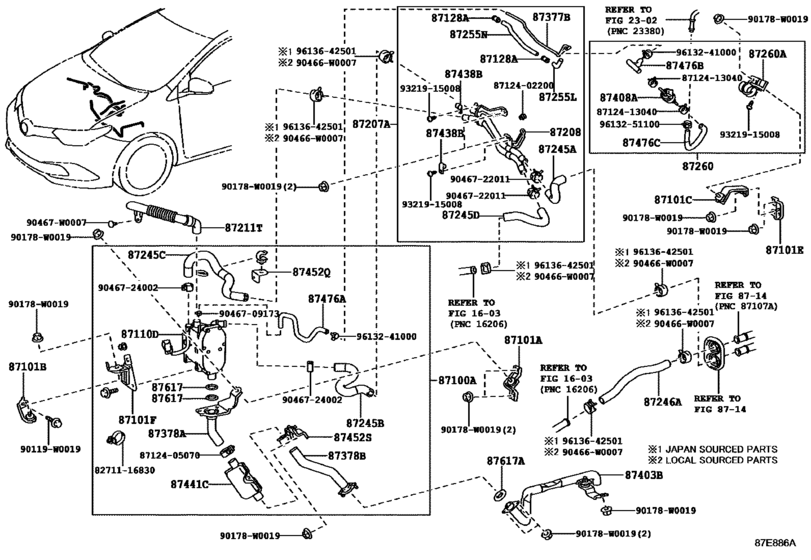

Heating & Air Conditioning - Water Piping ([05.2015 - ] W(STOVE HEATER) (1505- )NDE180) 50
#OEMPart name
87100 87100-02060 Heater & Accessory Assy
87101 87101-02060 Bracket Sub-Assy, Heater No.1
87101 87101-02070 Bracket Sub-Assy, Heater No.2
87101 87101-02081 Bracket Sub-Assy, Heater No.3
87101 87101-02100 Bracket Sub-Assy, Heater No.4
87101 87101-02120 Bracket Sub-Assy, Heater No.5
87110 87110-02020 Heater Assy
87128 87128-74020 Grommet, Heater
87207 87207-02120 Pipe & Hose Sub-Assy, Water A
87208 87208-02050 Pipe Sub-Assy, Heater Water
87211 87211-02250 Duct, Air
87245 87245-02N00 Hose, Heater Water, Inlet A
87245 87245-02P70 Hose, Heater Water, Inlet A
87245 87245-02F20 Hose, Heater Water, Inlet B
87245 87245-02B00 Hose, Heater Water ,inlet C
87245 87245-02Q10 Hose, Heater Water, Inlet D
87246 87245-02P80 Hose, Heater Water, Outlet A
87255 87255-02020 Pipe, Heater Protector, No.2
87255 87255-02010 Pipe, Heater Protector, No.1
87260 87260-02031 Pump Assy, Heater
87260 87261-02010 Bracket, Heater Pump
87377 87377-02010 Pipe, Fuel
87378 87378-02050 Pipe, Exhaust
87378 87378-02060 Pipe, Exhaust, No.2
87403 87403-02050 Pipe Sub-Assy, Exhaust
87408 87408-0D011 Pump Sub-Assy, Fuel
87438 87438-12010 Bracket, Heater Pipe, C
87441 87441-05010 Muffler
87452 87452-02090 Bracket, Heater, No.1
87452 87452-02100 Bracket, Heater, No.2
87476 87476-02060 Hose, Heater Fuel, No.1
87476 87476-02051 Hose, Heater Fuel, No.2
87476 87476-02031 Hose, Heater Fuel, No.3
87617 87617-02040 Gasket, Heat Exchanger Unit No.1
87617 87617-02020 Gasket, Heat Exchanger Unit No.1
90119 90119-W0019 BOLT WWASHER
90119 90119-A0182 New Genuine Part
90178 90178-W0019 Nut, Cap(For Cylinder Head Cover)
90466 90466-W0007 Clip(For Water By-Pass Hose No.1)
90467 90467-W0007 Clip
8271116830 82711-16830 Clamp, Headlamp Cleaner, No.1
8712405070 87124-05070 Clamp, Heater
8712413040 87124-13040 Clamp, Heater Hose, No.2
9046709173 90467-09173 Clamp Or Clip(For Radiator Reserve Tank Drain Cap)
9046722011 90467-22011 Clip(For Water By-Pass Hose No.1)
9046724002 90467-24002 Clip(For Water By-Pass Hose No.2)
9321915008 93219-15008 New Genuine Part
9613241000 96132-41000 Clip, No.1(For Idle-Up Hose)
9613251100 96132-51100 Clip (For Hose)
9613642501 96136-42501 Clip(For Ventilation Hose)
