Search › Model › NDE180
NDE180

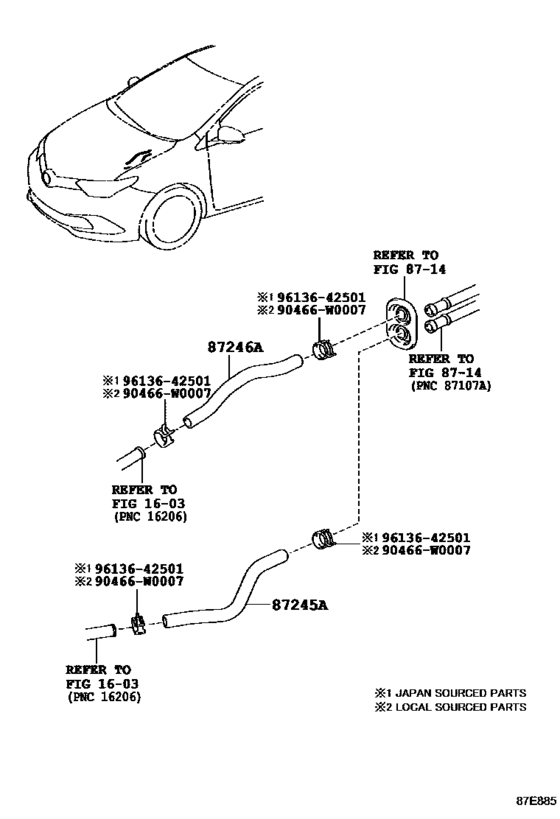

Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-02N00 | Hose, Heater Water, Inlet A |
| 87245 | 87245-02P70 | Hose, Heater Water, Inlet A |
| 87246 | 87245-02P80 | Hose, Heater Water, Outlet A |
| 90466 | 90466-W0007 | Clip(For Water By-Pass Hose No.1) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87245-02N00 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) |
| 87245-02P70 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) |
| 87245-02P80 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) |
| 90466-W0007 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([05.2015 - ] (1505- )NDE180) |
