NDE180

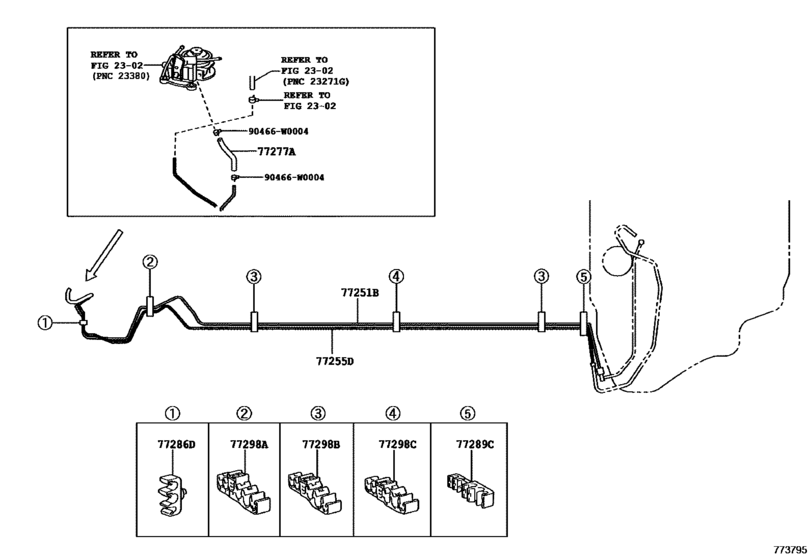

Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) 9
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-02600 | Tube, Fuel Main |
| 77255 | 77255-02380 | Tube, Fuel Return |
| 77277 | 95338-08016 | Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE) |
| 77286 | 77286-0F010 | Clamp, Fuel Tube, No.2 |
| 77289 | 77298-0F030 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-0F020 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-0F010 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-02170 | Clamp, Fuel Tube, No.4 |
| 90466 | 90466-W0004 | Clip(For Fuel Vapor Feed Hose) |
| OEM | Part name | Category |
|---|---|---|
| 77251-02600 | Tube, Fuel Main | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77255-02380 | Tube, Fuel Return | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77286-0F010 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77298-02170 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77298-0F010 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77298-0F020 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 77298-0F030 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 90466-W0004 | Clip(For Fuel Vapor Feed Hose) | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
| 95338-08016 | Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE) | Fuel Tank & Tube ([05.2015 - ] FUEL TUBE (1505- )NDE180) |
