NDE180

Toyota AURIS-COROLLA · 2012 · 3,450 parts · 191 categories

← Back to categories

3,450 items

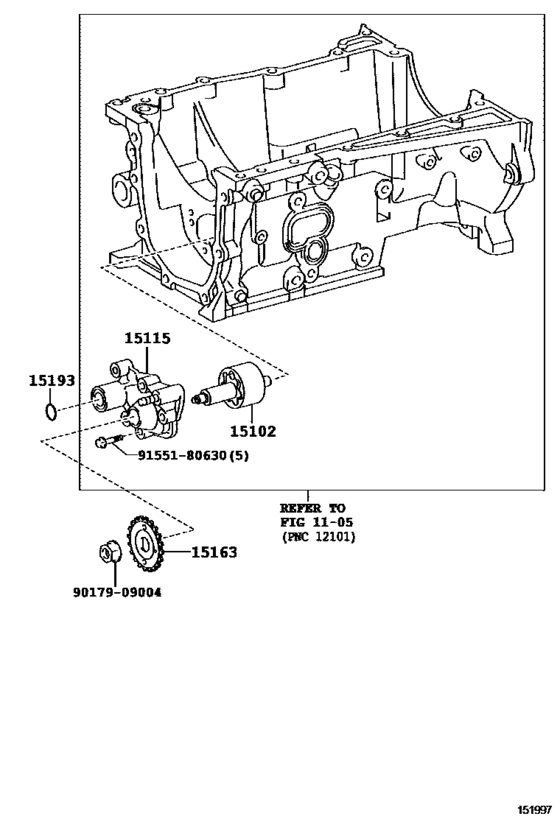

Engine Oil Pump ([10.2012 - ] (1210- )1NDTV) 8

#	OEM	Part name
15102	15102-0N010	Rotor Set, Oil Pump
15102	15102-33060	Rotor Set, Oil Pump
15115	15120-0N010	Cover, Oil Pump
15115	15120-33080	Cover, Oil Pump
15163	15163-33020	Gear, Oil Pump Drive Shaft
15193	15193-33020	Gasket, Oil Pump
9017909004	90179-09004	NUT
9155180630	91551-80630	Bolt(For Cylinder Head Cover)

OEM	Part name	Category
15102-0N010	Rotor Set, Oil Pump	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
15102-33060	Rotor Set, Oil Pump	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
15120-0N010	Cover, Oil Pump	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
15120-33080	Cover, Oil Pump	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
15163-33020	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
15193-33020	Gasket, Oil Pump	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
90179-09004	NUT	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)
91551-80630	Bolt(For Cylinder Head Cover)	Engine Oil Pump ([10.2012 - ] (1210- )1NDTV)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 191
Collected: 2026-08-02
