Search › Model › NDE180

NDE180

Toyota AURIS-COROLLA · 2012 · 3,450 parts · 191 categories

3,450 items

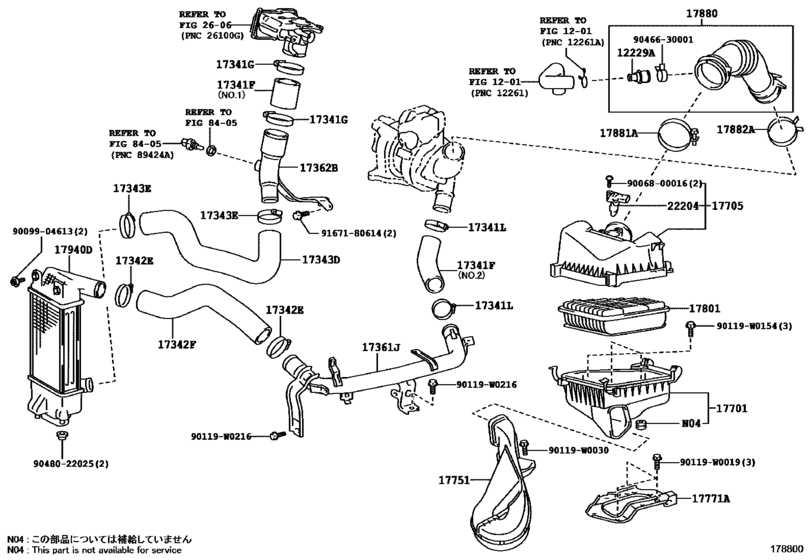

Air Cleaner ([05.2015 - ] (1505- )1NDTV) 30

#	OEM	Part name
12229	12229-33010	Pipe, Ventilation
17341	17341-33060	Hose, Air, No.1
17341	17341-33080	Hose, Air, No.1
17341	90460-63011	Clamp Or Clip(For Air Hose, No.1)
17341	90460-50005	Clamp, Hose - HOSE, NO.2(FOR INTERCOOLER)
17342	90460-60006	Clamp, Hose, No.2(For Intercooler)
17342	17342-33120	Hose, Air, No.2(For Intercooler)
17343	17343-33220	Hose, Air, No.3
17361	17361-33020	Tube, Air, No.1
17362	17362-33080	Tube, Air, No.2
17701	17701-0R020	Case Sub-Assy, Air Cleaner
17705	17705-0N100	Cap Sub-Assy, Air Cleaner
17751	17751-0N060	Inlet, Air Cleaner, No.1
17771	17771-0R020	Bracket, Air Cleaner
17801	17801-0R030	Element Sub-Assy, Air Cleaner Filter
17880	17880-0N090	Hose Assy, Air Cleaner
17881	96111-10850	Clamp, Hose(For Air Connector)
17882	90466-54002	Clamp(For Air Cleaner Hose, No.2) - NO.1)
17940	17940-0N150	Intercooler Assy
22204	22204-30030	Meter Sub-Assy, Intake Air Flow
90119	90119-W0019	BOLT WWASHER
90119	90119-A0182	New Genuine Part
90119	90119-W0030	New Genuine Part
90119	90119-W0154	New Genuine Part
90119	90119-W0216	New Genuine Part
9006800016	90068-00016	New Genuine Part
9009904613	90099-04613	New Genuine Part
9046630001	90466-30001	Clip Or Clamp(For Ventilation Hose)
9048022025	90480-22025	Cushion, Intercooler Support
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
12229-33010	Pipe, Ventilation	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17341-33060	Hose, Air, No.1	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17341-33080	Hose, Air, No.1	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17342-33120	Hose, Air, No.2(For Intercooler)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17343-33220	Hose, Air, No.3	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17361-33020	Tube, Air, No.1	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17362-33080	Tube, Air, No.2	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17701-0R020	Case Sub-Assy, Air Cleaner	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17705-0N100	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17751-0N060	Inlet, Air Cleaner, No.1	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17771-0R020	Bracket, Air Cleaner	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17801-0R030	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17880-0N090	Hose Assy, Air Cleaner	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
17940-0N150	Intercooler Assy	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
22204-30030	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90068-00016	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90099-04613	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90119-A0182	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90119-W0019	BOLT WWASHER	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90119-W0030	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90119-W0154	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90119-W0216	New Genuine Part	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90460-50005	Clamp, Hose - HOSE, NO.2(FOR INTERCOOLER)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90460-60006	Clamp, Hose, No.2(For Intercooler)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90460-63011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90466-30001	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90466-54002	Clamp(For Air Cleaner Hose, No.2) - NO.1)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
90480-22025	Cushion, Intercooler Support	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([05.2015 - ] (1505- )1NDTV)
