NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories
NDE150 ×

← Back to categories

4,719 items

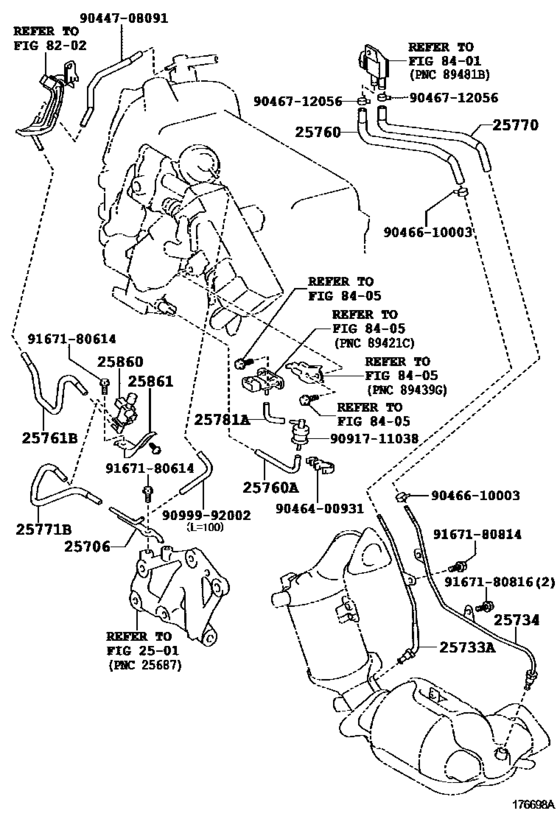

Vacuum Piping ([07.2010 - ] (1007- )1NDTV..DCRL) 22
#OEMPart name
25706 25706-33080 Pipe Sub-Assy, Vacuum Transmitting, No.1
25733 25733-33010 Pipe, Vacuum, No.1
25734 25734-33010 Pipe, Vacuum, No.2
25760 25760-33080 Hose Assy, Vacuum Transmitting
25760 25760-33110 Hose Assy, Vacuum Transmitting
25761 25761-33060 Hose, Vaccum Transmitting, No.1
25770 25770-33020 Hose Assy, Vacuum Transmitting, No.2
25771 25771-33050 Hose, Vaccum Transmitting, No.2
25781 25791-33010 Hose, Vacuum Transmitting, No.3
25860 25860-30070 Valve Assy, Vacuum Switching
25861 25861-33020 Bracket, Vacuum Switching Valve
9044708091 90447-08091 New Genuine Part
9046400931 90464-00931 New Genuine Part
9046610003 90466-10003 New Genuine Part
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9091711038 90917-11038 Filter, Gas, No.1
9099992002 90999-92002 Air Hose (300 mm)
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167180814 91671-80814 BOLT FLANGE WWASER
9167180814 90119-A0165 New Genuine Part
9167180816 91671-80816 Bolt (For Transmission Control Cable Bracket)
