Search › Model › NDE150

NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

4,719 items

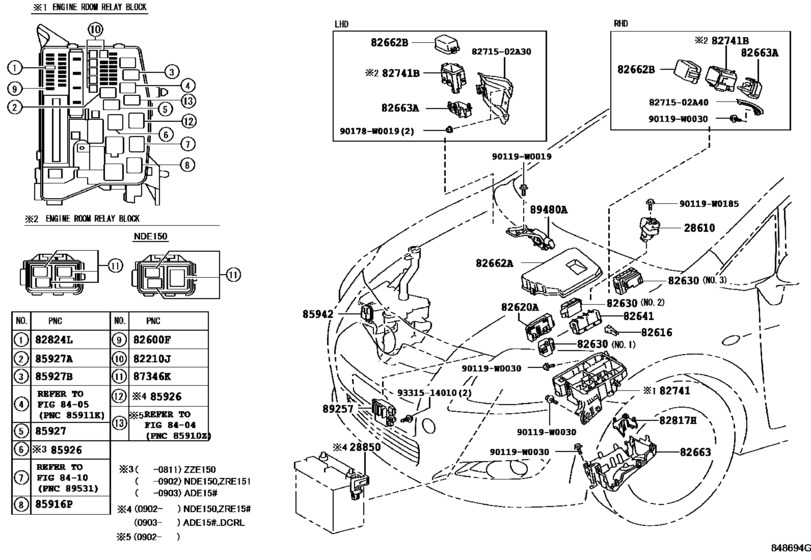

Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150) 42

#	OEM	Part name
28610	28601-26030	Glow Sub-Assy, Plug Relay Set - GLOW PLUG
28850	28850-28040	Sensor Assy, Battery Current
82210	90982-08294	Fusible Link
82210	90982-08295	Fusible Link
82210	90982-08296	Fusible Link
82600	90080-82050	Instrument Panel Fuse
82600	90080-82051	Instrument Panel Fuse
82600	90080-82052	Instrument Panel Fuse
82600	90080-82053	Instrument Panel Fuse
82600	90080-82054	Instrument Panel Fuse
82600	90080-82055	Instrument Panel Fuse
82616	82616-58010	Puller, Fuse
82620	82620-12270	Block Assy, Fusible Link
82630	82631-02010	Holder Assy, Fuse
82630	82631-02020	Holder Assy, Fuse
82630	82631-02030	Holder Assy, Fuse
82641	82641-47020	Relay, Integration No.1
82662	82662-02320	Cover, Relay Block, Upper, No.1
82662	82662-12280	Cover, Relay Block, Upper, No.2
82663	82663-02050	Cover, Relay Block, Lower
82663	82663-12070	Cover, Relay Block, Lower
82741	82741-02050	Block, Engine Room Relay
82741	82741-12080	Block, Engine Room Relay
82817	82817-02450	Protector, Wiring Harness
82824	82824-20140	Connector, Wiring Harness
85916	90080-87030	Relay, Ignition, No.1
85926	90080-87031	Relay Assy (For Heater Blower Motor)
85927	90080-87019	Relay, Ignition, No.2
85927	90080-87021	Relay, Lamp Cut
85942	85942-12010	Relay, Headlamp Cleaner Control
85942	85942-12040	Relay, Headlamp Cleaner Control
85942	85942-20031	Relay, Headlamp Cleaner Control
87346	90987-02025	Relay
89257	89257-12020	Computer, Cooling Fan
90119	90119-W0019	BOLT WWASHER
90119	90119-A0182	New Genuine Part
90119	90119-W0030	New Genuine Part
90119	90119-W0185	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
8271502	82715-02A30	Bracket,wiring Harness Clamp
8271502	82715-02A40	Bracket,wiring Harness Clamp
9331514010	93315-14010	SCREW

OEM	Part name	Category
28601-26030	Glow Sub-Assy, Plug Relay Set - GLOW PLUG	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
28850-28040	Sensor Assy, Battery Current	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82616-58010	Puller, Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82620-12270	Block Assy, Fusible Link	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82631-02010	Holder Assy, Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82631-02020	Holder Assy, Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82631-02030	Holder Assy, Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82641-47020	Relay, Integration No.1	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82662-02320	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82662-12280	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82663-02050	Cover, Relay Block, Lower	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82663-12070	Cover, Relay Block, Lower	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82715-02A30	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82715-02A40	Bracket,wiring Harness Clamp	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82741-02050	Block, Engine Room Relay	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82741-12080	Block, Engine Room Relay	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82817-02450	Protector, Wiring Harness	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
82824-20140	Connector, Wiring Harness	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
85942-12010	Relay, Headlamp Cleaner Control	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
85942-12040	Relay, Headlamp Cleaner Control	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
85942-20031	Relay, Headlamp Cleaner Control	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
89257-12020	Computer, Cooling Fan	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82050	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82051	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82052	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82053	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82054	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-82055	Instrument Panel Fuse	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-87019	Relay, Ignition, No.2	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-87021	Relay, Lamp Cut	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-87030	Relay, Ignition, No.1	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90080-87031	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90119-A0182	New Genuine Part	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90119-W0019	BOLT WWASHER	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90119-W0030	New Genuine Part	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90119-W0185	New Genuine Part	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90982-08294	Fusible Link	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90982-08295	Fusible Link	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90982-08296	Fusible Link	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
90987-02025	Relay	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
93315-14010	SCREW	Switch & Relay & Computer ([02.2007 - ] ENGINE ROOM (0702- )ADE15#,NDE150,ZRE15#,ZZE150)
