NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

4,719 items

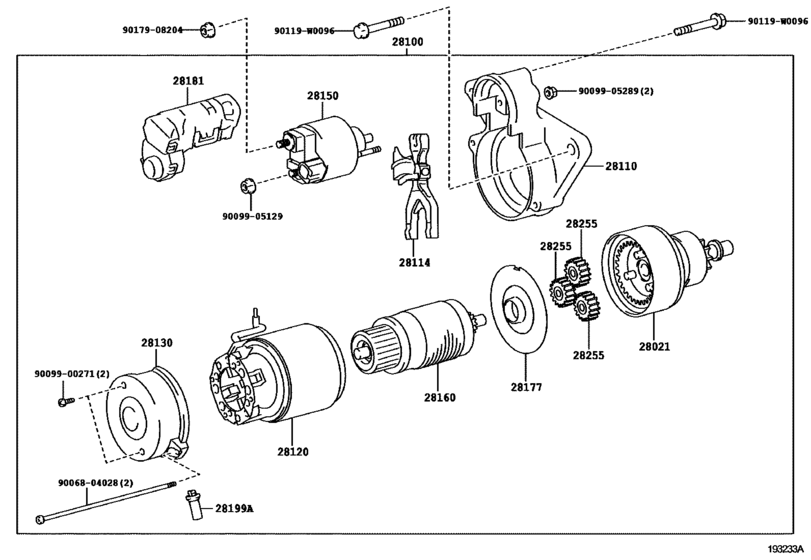

Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV) 28

#	OEM	Part name
28021	28021-0N050	Clutch Sub-Assy, Starter Center Bearing
28021	28021-33090	Clutch Sub-Assy, Starter Center Bearing
28100	28100-0N040	Starter Assy
28100	28100-0N050	Starter Assy
28110	28110-0N050	Housing Assy, Starter Drive
28110	28110-33110	Housing Assy, Starter Drive
28114	28114-33100	Pin, Starter Drive Lever Set
28120	28120-33110	Yoke Assy, Starter
28120	28120-38020	Yoke Assy, Starter
28130	28130-0N050	Frame Assy, Starter Commutator End
28130	28130-33110	Frame Assy, Starter Commutator End
28150	28150-37020	Switch Assy, Magnet Starter
28160	28160-0G020	Armature Assy, Starter
28160	28160-33090	Armature Assy, Starter
28177	28177-0G020	Plate(For Starter Armature)
28177	28177-37050	Plate(For Starter Armature)
28181	28181-33010	Terminal, Starter
28199	28199-33110	Protector, Dust Starter
28199	28199-46080	Cover, Starter End Frame
28255	28255-0G040	Gear, Planet
28255	28255-33090	Gear, Planet
90119	90119-W0096	New Genuine Part
9006804028	90068-04028	New Genuine Part
9009900271	90099-00271	Screw, Starter
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905289	90099-05289	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER

OEM	Part name	Category
28021-0N050	Clutch Sub-Assy, Starter Center Bearing	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28021-33090	Clutch Sub-Assy, Starter Center Bearing	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28100-0N040	Starter Assy	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28100-0N050	Starter Assy	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28110-0N050	Housing Assy, Starter Drive	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28110-33110	Housing Assy, Starter Drive	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28114-33100	Pin, Starter Drive Lever Set	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28120-33110	Yoke Assy, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28120-38020	Yoke Assy, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28130-0N050	Frame Assy, Starter Commutator End	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28130-33110	Frame Assy, Starter Commutator End	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28150-37020	Switch Assy, Magnet Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28160-0G020	Armature Assy, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28160-33090	Armature Assy, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28177-0G020	Plate(For Starter Armature)	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28177-37050	Plate(For Starter Armature)	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28181-33010	Terminal, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28199-33110	Protector, Dust Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28199-46080	Cover, Starter End Frame	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28255-0G040	Gear, Planet	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
28255-33090	Gear, Planet	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90068-04028	New Genuine Part	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90080-18070	NUT, WWASHER	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90099-00271	Screw, Starter	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90099-05289	New Genuine Part	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90119-W0096	New Genuine Part	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
90179-08204	Nut	Starter ([02.2009 - ] 12V 2.0KW (0902- )1NDTV)
