Search › Model › NDE150

NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories
NDE150 ×

← Back to categories

4,719 items

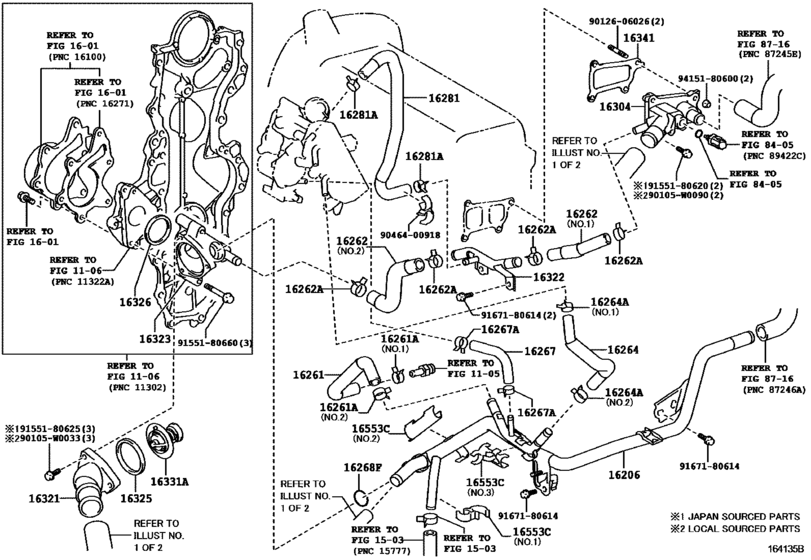

Radiator & Water Outlet ([07.2010 - 09.2010] (1007-1009)1NDTV..DCRL) 52
#OEMPart name
16206 16206-33020 Pipe Sub-Assy, Water By-Pass
16206 16206-33040 Pipe Sub-Assy, Water By-Pass
16206 16206-33041 Pipe Sub-Assy, Water By-Pass
16261 16261-0N050 Hose, Water By-Pass
16261 16261-33050 Hose, Water By-Pass
16261 96137-41701 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96137-41901 Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
16262 16262-0N010 Hose, Water Inlet
16262 16262-0N011 Hose, Water Inlet
16262 16262-33010 Hose, Water Inlet
16262 16262-33011 Hose, Water Inlet
16262 16263-0N010 Hose, Water Inlet
16262 16263-33010 Hose, Water Inlet
16262 16263-33030 Hose, Water Inlet
16262 96136-42101 Clip, Hose(For Radiator Hose Sub-Assy)
16262 96136-52201 Clip(For Ventilation Hose No.2)
16264 16264-0N030 Hose, Water By-Pass, No.2
16264 16264-33030 Hose, Water By-Pass, No.2
16264 16264-33040 Hose, Water By-Pass, No.2
16267 16267-0N050 Hose, Water By-Pass, No.3
16267 16267-33030 Hose, Water By-Pass, No.3
16267 96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16268 96761-24021 Ring, O(For Water By-Pass Joint Front)
16281 16281-0N070 Hose, Water By-Pass, No.4
16281 16281-33030 Hose, Water By-Pass, No.4
16304 16304-33010 Outlet Sub-Assy, Water
16304 16304-33011 Outlet Sub-Assy, Water
16321 16321-33020 Inlet, Water
16321 16321-33050 Inlet, Water
16322 16322-33010 Pipe, Water Inlet
16323 16323-33010 Housing, Water Inlet
16323 16323-33030 Housing, Water Inlet
16325 16325-33010 Gasket, Water Inlet Housing, No.1
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16326-33010 Gasket, Water Inlet Housing, No.2
16326 16326-33030 Gasket, Water Inlet Housing, No.2
16331 90916-03143 Thermostat
16341 16341-33010 Gasket, Water Outlet
16553 16581-33040 Clamp, Hose
16553 16581-33050 Clamp, Hose
16553 16581-33060 Clamp, Hose
16553 16581-33120 Clamp, Hose
16553 16581-33130 Clamp, Hose
90105 90105-W0033 New Genuine Part
90105 90105-W0090 New Genuine Part
9012606026 90126-06026 Bolt, Stud(Manifold To Throttle Body)
9046400918 90464-00918 New Genuine Part
9155180620 91551-80620 Bolt
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155180660 91551-80660 BOLT FLANGE
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
