NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

4,719 items

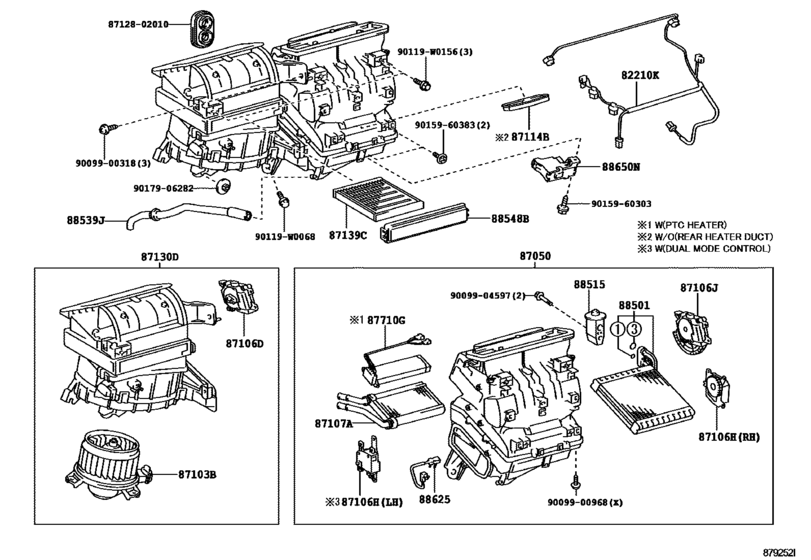

Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD) 48

#	OEM	Part name
82210	82212-02020	Harness Assy, Air Conditioner
82210	82212-02060	Harness Assy, Air Conditioner
87050	87050-02850	Radiator Assy, Air Conditioner
87050	87050-02E50	Radiator Assy, Air Conditioner
87050	87050-02E60	Radiator Assy, Air Conditioner
87050	87050-02E70	Radiator Assy, Air Conditioner
87050	87050-02G10	Radiator Assy, Air Conditioner
87103	87103-02120	Motor Sub-Assy, Blower W/fan
87103	87103-02130	Motor Sub-Assy, Blower W/fan
87103	87103-05050	Motor Sub-Assy, Blower W/fan
87106	87106-02150	Servo Sub-Assy, Damper, No.1 - DAMPER(FOR RECIRCULATION & FRESH)
87106	87106-02300	Servo Sub-Assy, Damper, No.1
87106	87106-02160	Servo Sub-Assy, Damper, No.1
87106	87106-02120	Servo Sub-Assy, Damper(For Airmix)
87106	87106-02270	Servo Sub-Assy, Damper(For Airmix)
87106	87106-02130	Servo Sub-Assy, Damper(For Airmix No.2)
87106	87106-02280	Servo Sub-Assy, Damper(For Airmix No.2)
87106	87106-05040	Servo Sub-Assy, Damper(For Airmix)
87106	87106-02140	Servo Sub-Assy, Damper(For Mode)
87107	87107-02150	Unit Sub-Assy, Heater Radiator
87114	87114-02010	Cover, Heater
87130	87130-02251	Blower Assy
87130	87130-02261	Blower Assy
87130	87130-02281	Blower Assy
87130	87130-05181	Blower Assy
87139	87139-02020	Filter, Clean Air
87710	87710-02100	Quick Heater Assy
88501	88501-02201	Evaporator Sub-Assy, Cooler, No.1
88501	88501-02202	Evaporator Sub-Assy, Cooler, No.1
88515	88515-02150	Valve, Cooler Expansion
88515	88515-02520	Valve, Cooler Expansion
88539	88539-02100	Hose, Drain Cooler
88539	88539-02370	Hose, Drain Cooler
88548	88548-02060	Case, Air Filter
88625	88625-02110	Thermistor, Cooler, No.1
88650	88650-02640	Amplifier Assy, Air Conditioner
88650	88650-02660	Amplifier Assy, Air Conditioner
88650	88650-02740	Amplifier Assy, Air Conditioner
90119	90119-W0068	Bolt
90119	90119-W0156	New Genuine Part
8712802010	87128-02010	Grommet, Heater
9009900318	90099-00318	New Genuine Part
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9009904597	90099-04597	Bolt(For Cooler Expansion Valve)
9015960303	90159-60303	SCREW
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906282	90179-06282	New Genuine Part

OEM	Part name	Category
82212-02020	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
82212-02060	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87050-02850	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87050-02E50	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87050-02E60	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87050-02E70	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87050-02G10	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87103-02120	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87103-02130	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87103-05050	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02120	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02130	Servo Sub-Assy, Damper(For Airmix No.2)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02140	Servo Sub-Assy, Damper(For Mode)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02150	Servo Sub-Assy, Damper, No.1 - DAMPER(FOR RECIRCULATION & FRESH)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02160	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02270	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02280	Servo Sub-Assy, Damper(For Airmix No.2)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-02300	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87106-05040	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87107-02150	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87114-02010	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87128-02010	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87130-02251	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87130-02261	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87130-02281	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87130-05181	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87139-02020	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
87710-02100	Quick Heater Assy	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88501-02201	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88501-02202	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88515-02150	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88515-02520	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88539-02100	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88539-02370	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88548-02060	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88625-02110	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88650-02640	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88650-02660	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
88650-02740	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90099-04597	Bolt(For Cooler Expansion Valve)	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90119-W0068	Bolt	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90119-W0156	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90159-60303	SCREW	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90159-A0010	SCREW WWASHER TAPP	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)
90179-06282	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2007 - ] AUTO AIR CONDITIONER (0702- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 65
Category: 237
Collected: 2026-08-02
