Search › Model › NDE150
NDE150

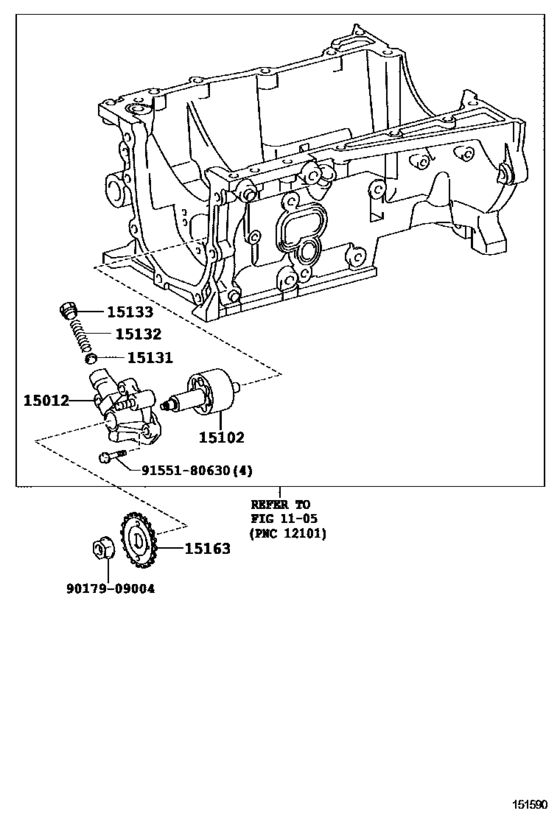

Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) 8
| # | OEM | Part name |
|---|---|---|
| 15012 | 15012-33060 | Cover Sub-Assy, Oil Pump |
| 15102 | 15102-33060 | Rotor Set, Oil Pump |
| 15131 | 15131-38010 | Valve, Oil Pump Relief |
| 15132 | 15132-33020 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-20010 | Plug, Oil Pump Relief Valve |
| 15163 | 15163-33010 | Gear, Oil Pump Drive Shaft |
| 9017909004 | 90179-09004 | NUT |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 15012-33060 | Cover Sub-Assy, Oil Pump | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 15102-33060 | Rotor Set, Oil Pump | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 15131-38010 | Valve, Oil Pump Relief | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 15132-33020 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 15133-20010 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 15163-33010 | Gear, Oil Pump Drive Shaft | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 90179-09004 | NUT | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
| 91551-80630 | Bolt(For Cylinder Head Cover) | Engine Oil Pump ([02.2009 - ] (0902- )1NDTV) |
