Search › Model › NDE150

NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

← Back to categories

4,719 items

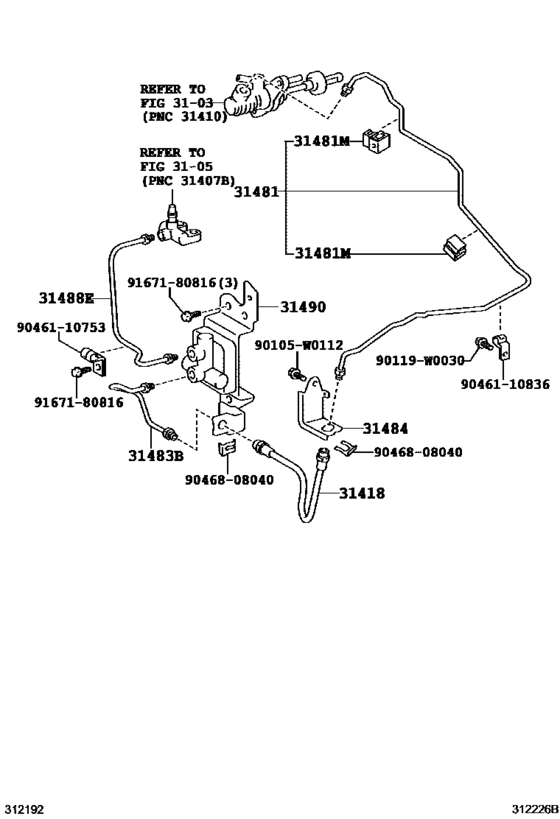

Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F) 15

#	OEM	Part name
31418	90947-W2019	Hose, Clutch
31481	31481-02391	Tube, Clutch Master Cylinder To Flexible Hose
31481	90949-01D78	Clamp(For Clutch Master Cylinder Tube)
31483	31483-02250	Tube, Accumulator To Flexible Hose
31483	31483-12130	Tube, Accumulator To Flexible Hose
31484	31484-02090	Bracket, Flexible Hose(For Clutch)
31488	31488-02010	Tube, Bleeder To Accumulator
31488	31488-12020	Tube, Bleeder To Accumulator
31490	31490-12110	Accumulator Assy, Clutch
90105	90105-W0112	BOLT FLANGE
90119	90119-W0030	New Genuine Part
9046110753	90461-10753	New Genuine Part
9046110836	90461-10836	New Genuine Part
9046808040	90468-08040	CLIP
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
31481-02391	Tube, Clutch Master Cylinder To Flexible Hose	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31483-02250	Tube, Accumulator To Flexible Hose	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31483-12130	Tube, Accumulator To Flexible Hose	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31484-02090	Bracket, Flexible Hose(For Clutch)	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31488-02010	Tube, Bleeder To Accumulator	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31488-12020	Tube, Bleeder To Accumulator	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
31490-12110	Accumulator Assy, Clutch	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90105-W0112	BOLT FLANGE	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90119-W0030	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90461-10753	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90461-10836	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90468-08040	CLIP	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90947-W2019	Hose, Clutch	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
90949-01D78	Clamp(For Clutch Master Cylinder Tube)	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Clutch Pedal & Flexible Hose ([02.2009 - ] (0902- )NDE150..RHD..6F)

Source: Public OEM parts-catalog data
Variants: 2 / 65
Category: 237
Collected: 2026-08-02
