NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

← Back to categories

4,719 items

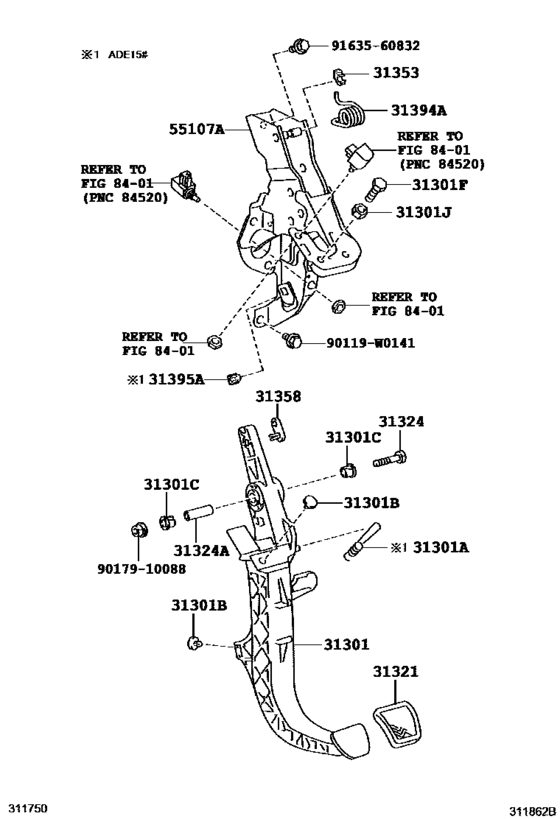

Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F) 17

#	OEM	Part name
31301	31311-12370	Pedal Sub-Assy, Clutch
31301	31311-12371	Pedal Sub-Assy, Clutch
31301	90541-06036	Cushion, No.1(For Clutch Pedal)
31301	90386-13015	Bush(For Clutch Pedal)
31301	90101-10369	Bolt(For Clutch Pedal Stopper)
31301	94130-61000	Nut(For Clutch Pedal Stopper)
31321	31321-42010	Pad, Clutch Pedal
31324	90101-10039	Shaft, Clutch Pedal
31324	90387-10003	Collar, Clutch Pedal Shaft
31353	31353-26010	Holder, Clutch Pedal Spring
31358	31358-42010	Cap, Over Center Spring
31394	31394-12060	Spring, Compression(For Turn Over Spring Seat)
55107	55107-12290	Support Sub-Assy, Clutch Pedal
55107	55107-12291	Support Sub-Assy, Clutch Pedal
90119	90119-W0141	New Genuine Part
9017910088	90179-10088	Nut
9163560832	91635-60832	New Genuine Part

OEM	Part name	Category
31311-12370	Pedal Sub-Assy, Clutch	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
31311-12371	Pedal Sub-Assy, Clutch	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
31321-42010	Pad, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
31353-26010	Holder, Clutch Pedal Spring	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
31358-42010	Cap, Over Center Spring	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
31394-12060	Spring, Compression(For Turn Over Spring Seat)	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
55107-12290	Support Sub-Assy, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
55107-12291	Support Sub-Assy, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90101-10039	Shaft, Clutch Pedal	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90101-10369	Bolt(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90119-W0141	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90179-10088	Nut	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90386-13015	Bush(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90387-10003	Collar, Clutch Pedal Shaft	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
90541-06036	Cushion, No.1(For Clutch Pedal)	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
91635-60832	New Genuine Part	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
94130-61000	Nut(For Clutch Pedal Stopper)	Clutch Pedal & Flexible Hose ([02.2007 - ] (0702- )ADE15#,NDE150,ZRE152..RHD..5F,6F)
